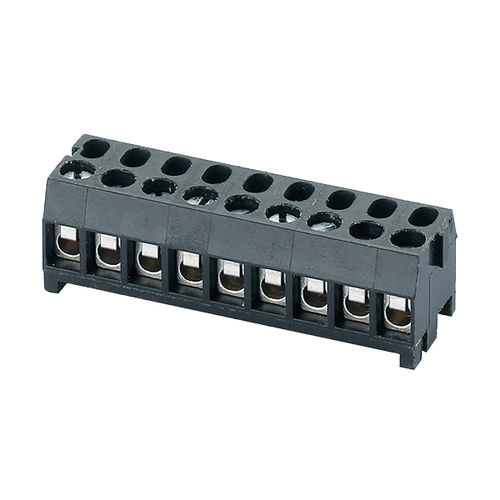

Plug-in terminal block 20.120M/8-E

screw connectionmodularcopper

Terminal Block Plug-In 3.5mm, 8 Way, Modular Black, Slot Screw Pack Size: 100 3.50mm Pitch, Terminal Block Plug In, Black, Slot Head, Modular Key Features • UL94-V0 • PA66 • 3.50mm Pin Pitch • Slot Head • RoHS Compliant • xx = Number of Poles (available 2~24 poles) • Modular Technical Data • Pitch 3.50mm • Solder Pin n/a • Wire Clamp Copper Alloy, Nickel plated • Wire Range 28~16 AWG (1.0 mm²) • PCB Hole Diameter n/a • Stripping Length 5~6mm • Screw Slot Head • Screw Type M2.0 Steel (Zinc Plated) • Screw Torque 0.2 Nm (1.7lb/in) • Insulation Voltage AC 2000V/1 Min • Initial Contact Resistance 20mΩ • Insulation Resistance 500MΩ / DC500V • Temperature Range -40 to +105°C • Max Soldering n/a
