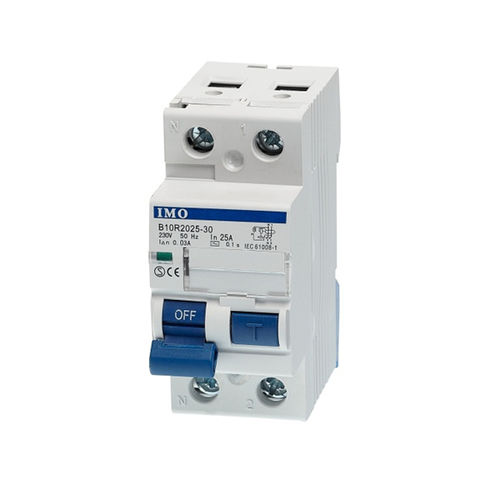

Thermal-magnetic residual current circuit breaker B10R2025-30

ACvoltageoverload

RCD 10KA, 30mA 1 Pole + N, 25 Amp, 230VAC Type AC Specifications • Neutral Position R • Residual Current Type AC • Temperature Range °C -25 to 55 °C • Number of Poles 1P+N • Residual Current (mA) 30.00 • Cable sizes (AWG) 2AWG • Cable size (mm²) 35mm The IMO range of miniature circuit breakers have been designed for protection of electrical installations against overload and short circuits and are manufactured in accordance with IEC 60898-1 Technical Data • Handle central-tripping function for circuit fault indicating • New front design; cover and handle in arc shape • Contact position indicating window; transparent cover to carry label • High short circuit capacity • Suitable for terminal and Pin/Fork type busbar connection • Finger protected connection terminals • Handle padlock device Tripping characteristics in accordance with B, C and D type curves • Curve B: 3-5 In • Curve C: 5-10 In • Curve D: 10-20 In
