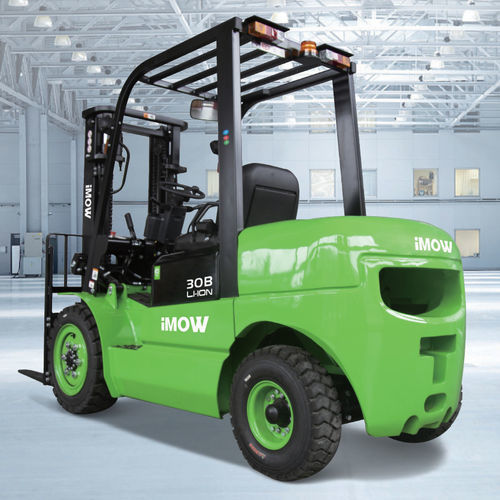

Counterbalanced forklift truck ICE3 Series
electricdieselride-on

Counterbalanced forklift truck - ICE3 Series - iMOW - electric / diesel / ride-on
Counterbalanced forklift truck - ICE3 Series - iMOW - electric / diesel / ride-on
Counterbalanced forklift truck - ICE3 Series - iMOW - electric / diesel / ride-on - image - 2
Counterbalanced forklift truck - ICE3 Series - iMOW - electric / diesel / ride-on - image - 3
Counterbalanced forklift truck - ICE3 Series - iMOW - electric / diesel / ride-on - image - 4
Counterbalanced forklift truck - ICE3 Series - iMOW - electric / diesel / ride-on - image - 5
Counterbalanced forklift truck - ICE3 Series - iMOW - electric / diesel / ride-on - image - 6
Add to favorites
Compare this product


Characteristics

Motor type
electric, diesel
Operator
ride-on
Applications
handling, indoor, outdoor
Other characteristics
counterbalanced, heavy-duty, custom, waterproof
Carrying capacity

3,000 kg, 3,500 kg
(6,613.9 lb, 7,716.2 lb)

Lifting height

3,000 mm
(118.11 in)

Max.: 6,000 mm
(236.22 in)

Min.: 2,700 mm
(106.3 in)

Overall width

1,230 mm
(48.4 in)

Overall length

3,780 mm, 3,940 mm
(148.8 in, 155.1 in)

Load center distance

500 mm
(19.7 in)

Weight without load

4,080 kg, 4,560 kg
(8,994.9 lb, 10,053.1 lb)

Axle loading with maximum load front

6,420 kg, 7,100 kg
(14,153.7 lb, 15,652.8 lb)

Axle loading with maximum load rear

660 kg, 960 kg
(1,455.1 lb, 2,116.4 lb)

Axle loading without load front

1,670 kg, 1,740 kg
(3,681.7 lb, 3,836 lb)

Axle loading without load rear

2,340 kg, 2,890 kg
(5,158.8 lb, 6,371.4 lb)

Height of mast when lowered

2,070 mm
(81.5 in)

Max.: 2,865 mm
(112.8 in)

Min.: 1,805 mm
(71.1 in)

Free lift

120 mm
(4.7 in)

Max.: 2,020 mm
(79.5 in)

Min.: 120 mm
(4.7 in)

Overall height with mast raised

4,110 mm
(161.8 in)

Max.: 7,110 mm
(279.9 in)

Min.: 2,220 mm
(87.4 in)

Height to top of overhead guard

2,160 mm, 2,190 mm
(85 in, 86.2 in)

Seat height

1,130 mm
(44.5 in)

Tow couplig height

320 mm
(12.6 in)

Length to fork face

2,710 mm, 2,870 mm
(106.7 in, 113 in)

Fork carriage width

1,150 mm
(45.3 in)

Ground clearance under mast with load

120 mm
(4.7 in)

Ground clearance at center of wheelbase with load

150 mm
(5.9 in)

Turning circle radius

2,500 mm, 2,645 mm
(98.4 in, 104.1 in)

Travel speed

11 km/h, 12 km/h
(6.8 mph, 7.5 mph)

Lifting speed

0.26 m/s, 0.29 m/s, 0.34 m/s, 0.36 m/s
(0.853 ft/s, 0.951 ft/s, 1.115 ft/s, 1.181 ft/s)

Lowering speed

0.4 m/s, 0.43 m/s
(1.312 ft/s, 1.411 ft/s)

Gradeability

15 %

Rated output

10 kW, 12 kW
(13.6 hp, 16.3 hp)

Noise level

74 dB

Description

iMOW’s first lithium-powered forklift truck ICE301 and ICE351 not only handle large-tonnage cargos and construction materials, but also support low emission, long duration, and easy maintenance. With carrying capacity of 3 and 3.5 tons and high strength frames, ICE301 and ICE351 combine features of a heavy-duty diesel truck and a low maintenance electric truck. They are perfectly for heavy-duty lifting operations and adoptable to many operation environments. ICE301 and ICE351 are equipped with batteries of large capacity to work for a long time and make sure the machines are on your working schedule. APPLICATION ICE301 is powered by 80V/205Ah Li-Ion battery and ICE351 is powered by 80V/280Ah Li-Ion battery while maintain the large operation space of more than 1.1m as diesel truck does. Due to the big wheels and waterproof design, ICE301/351 is suitable for both indoor and outdoor usage even on uneven roads or in the rain. The trucks offer high efficient performance at high intensity shifts, making them perfect for beverage, logistics and construction industries. LITHIUM-ION TECHNOLOGY ICE301 and ICE351 adapt LFP Li-ion batteries that prevent the battery from self-ignition and ensure safety operation. ICE301 and ICE351 support opportunity charging so they can be charged at preferable time during the day without disrupting working schedules. LOW TCO Comparing to a diesel forklift truck, ICE301 and ICE351 save 30%-50% of energy cost with li-ion technology. And there is no maintenance fee with no air filter, oil filter, engine oil or starter battery installed on the truck.
