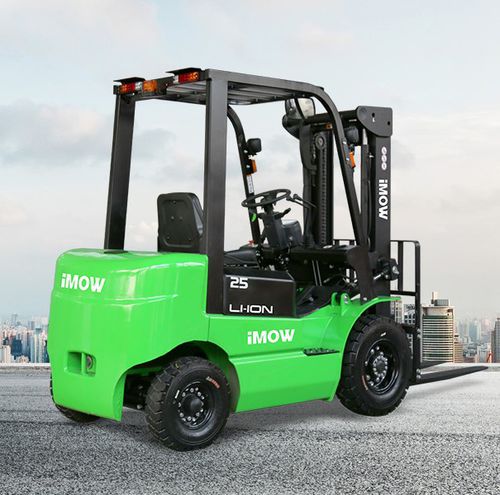

Counterbalanced forklift truck ICE251
dieselbattery-poweredride-on

Counterbalanced forklift truck - ICE251 - iMOW - diesel / battery-powered / ride-on
Counterbalanced forklift truck - ICE251 - iMOW - diesel / battery-powered / ride-on
Counterbalanced forklift truck - ICE251 - iMOW - diesel / battery-powered / ride-on - image - 2
Counterbalanced forklift truck - ICE251 - iMOW - diesel / battery-powered / ride-on - image - 3
Counterbalanced forklift truck - ICE251 - iMOW - diesel / battery-powered / ride-on - image - 4
Counterbalanced forklift truck - ICE251 - iMOW - diesel / battery-powered / ride-on - image - 5
Counterbalanced forklift truck - ICE251 - iMOW - diesel / battery-powered / ride-on - image - 6
Add to favorites
Compare this product


Characteristics

Motor type
battery-powered, diesel
Operator
ride-on
Applications
handling, indoor, outdoor
Other characteristics
counterbalanced, compact, waterproof
Carrying capacity

2,500 kg
(5,511.6 lb)

Lifting height

3,000 mm
(118.11 in)

Max.: 6,000 mm
(236.22 in)

Min.: 3,000 mm
(118.11 in)

Overall width

1,154 mm
(45.4 in)

Overall length

3,573 mm
(140.7 in)

Load center distance

500 mm
(19.7 in)

Weight without load

3,770 kg
(8,311.4 lb)

Axle loading with maximum load front

5,490 kg
(12,103.4 lb)

Axle loading with maximum load rear

780 kg
(1,719.6 lb)

Axle loading without load front

1,450 kg
(3,196.7 lb)

Axle loading without load rear

2,320 kg
(5,114.7 lb)

Height of mast when lowered

2,060 mm
(81.1 in)

Max.: 2,805 mm
(110.4 in)

Min.: 2,035 mm
(80.1 in)

Free lift

140 mm
(5.5 in)

Max.: 2,240 mm
(88.2 in)

Min.: 140 mm
(5.5 in)

Overall height with mast raised

4,050 mm
(159.4 in)

Max.: 7,025 mm
(276.6 in)

Min.: 3,565 mm
(140.4 in)

Height to top of overhead guard

2,160 mm
(85 in)

Seat height

1,095 mm
(43.1 in)

Tow couplig height

435 mm
(17.1 in)

Length to fork face

2,503 mm
(98.5 in)

Fork carriage width

1,040 mm, 1,090 mm
(40.9 in, 42.9 in)

Ground clearance under mast with load

100 mm
(3.9 in)

Ground clearance at center of wheelbase with load

150 mm
(5.9 in)

Turning circle radius

2,290 mm
(90.2 in)

Travel speed

11 km/h, 12 km/h
(6.8 mph, 7.5 mph)

Lifting speed

0.28 m/s, 0.37 m/s
(0.919 ft/s, 1.214 ft/s)

Lowering speed

0.45 m/s, 0.5 m/s
(1.476 ft/s, 1.64 ft/s)

Gradeability

15 %

Rated output

10 kW, 12 kW
(13.6 hp, 16.3 hp)

Noise level

74 dB

Description

Successful continuation on the ICE series, ICE251 is the 2.5 ton, 80V/205Ah Li-Ion battery-powered forklift to reduce carbon footprint, running cost and energy cost. The taperred roller type of wheel bearings are ideal for long service life and providing high reliability when driving on uneven road. This model also comes with better stability of mast for heavy duty applications. With Diesel chassis and li-ion cell, ICE251 is a perfect tool for both indoor and out usage as it combines both advantages of electric forklifts and IC trucks. APPLICATION Suitable for narrow aisle usage:The overall length of ICE251 is 3573 mm and the overall width is 1154 mm, which is 5% more compacted in size than a regular IC forklift to be used in narrow aisle. Suitable for multiple working conditions:The upgraded steering axle and mast extend its durability, making it a real workhorse to realize heavy duty applications. Suitable for indoor and outdoor usage:Due to its big wheels and waterproof design, ICE251 is suitable for both indoor and outdoor usage even on uneven roads or in the rain, which makes it perfect tools to handle in beverage, logistics, and construction industries. LITHIUM-ION TECHNOLOGY ICE 251 adapts LFP Li-ion battery that prevents the battery from self-ignition and ensures safety operation. It supports opportunity charging so it can be charged at preferable time during the day without disrupting working schedules. LOW TCO Comparing to a diesel forklift truck, ICE251 saves 30%-50% of energy cost with li-ion technology. And there is no maintenance fee with no air filter, oil filter, engine oil or starter battery installed on the truck.
