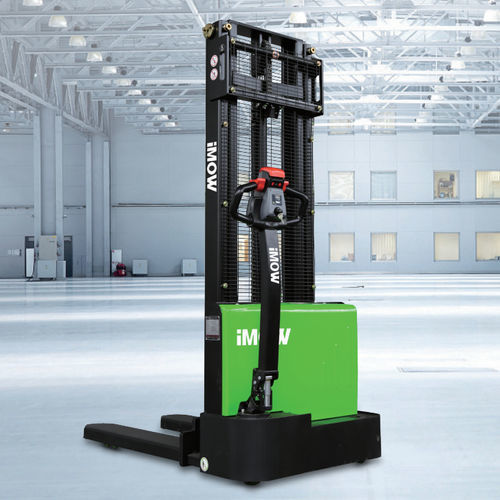

Electric stacker truck EST152
hydraulicwalk-behind24 V

Electric stacker truck - EST152 - iMOW - hydraulic / walk-behind / 24 V
Electric stacker truck - EST152 - iMOW - hydraulic / walk-behind / 24 V
Electric stacker truck - EST152 - iMOW - hydraulic / walk-behind / 24 V - image - 2
Electric stacker truck - EST152 - iMOW - hydraulic / walk-behind / 24 V - image - 3
Electric stacker truck - EST152 - iMOW - hydraulic / walk-behind / 24 V - image - 4
Electric stacker truck - EST152 - iMOW - hydraulic / walk-behind / 24 V - image - 5
Electric stacker truck - EST152 - iMOW - hydraulic / walk-behind / 24 V - image - 6
Add to favorites
Compare this product


Characteristics

Energy
electric, hydraulic
Operator
walk-behind
Voltage
24 V
Applications
for warehouse, for lifting, storage
Other characteristics
compact
Carrying capacity

1,500 kg
(3,306.9 lb)

Lifting height

2,430 mm
(95.67 in)

Min.: 2,520 mm
(99.21 in)

Max.: 3,320 mm
(130.71 in)

Height of mast when lowered

1,856 mm
(73.1 in)

Min.: 1,856 mm
(73.1 in)

Max.: 2,256 mm
(88.8 in)

Height of mast when raised

3,071 mm
(120.91 in)

Min.: 3,071 mm
(120.91 in)

Max.: 3,871 mm
(152.4 in)

Overall width

792 mm
(31.2 in)

Overall length

1,713 mm
(67.4 in)

Fork width

170 mm
(6.7 in)

Fork length

1,150 mm
(45.28 in)

Fork thickness

60 mm
(2.36 in)

Fork spacing

570 mm
(22.44 in)

Turning circle radius

1,458 mm
(57.4 in)

Battery capacity

85 Ah

Motor power traction

0.75 kW
(1.02 hp)

Motor power lifting

2.2 kW
(2.991 hp)

Travel speed

4.2 km/h, 4.5 km/h
(2.61 mph, 2.8 mph)

Lifting speed

0.08 m/s, 0.14 m/s
(0.262 ft/s, 0.459 ft/s)

Weight

595 kg
(1,311.75 lb)

Description

The EST152 is an AGM-powered electric stacker with the high strength chassis and high rigidity mast. It has passed the rollover test over 2.5m lifting height, ensuring great operation stability and safety. The truck provides comfortable maneuverability, provides efficient and effective vertical stacking and is good for space limitations in warehouse. APPLICATION EST152 is the ideal stacker to optimize multiple work tasks and tight storage stacking. It is suitable for lifting and moving in small to medium warehouse and manufacturing facilities, especially for medium height rack system and along narrow aisles. STRONG CHASSIS The side impact beam, plates, and boxes make the chassis stronger and can greatly reduce stress and deformation caused by heavy load. RIGID MAST The rigidity of the mast is greatly improved by its beam structure to provide smooth lifting and stacking for daily operation. EASY OPERATION The extra-long and offset tiller with the crawl speed button provides EST152 a better visibility and nimble maneuverability when operating in tight space. EFFICIENT HYDRAULIC SYSTEM High quality hydraulic pump ensures very little noise, maximum efficiency, durability and shortens lifting time.
