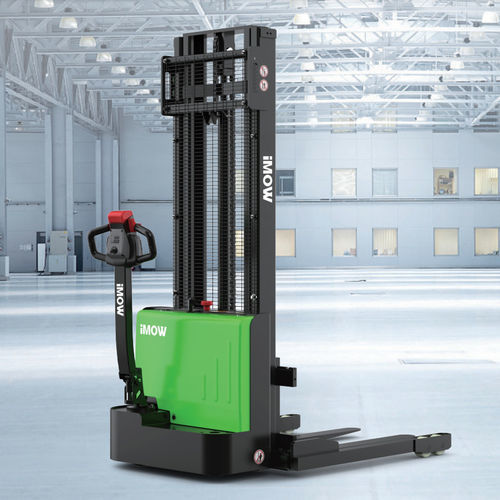

Straddle stacker truck ESD122
electricwalk-behind12 V

straddle stacker truck
straddle stacker truck
straddle stacker truck
straddle stacker truck
straddle stacker truck
straddle stacker truck
straddle stacker truck
Add to favorites
Compare this product


Characteristics

Energy
electric
Operator
walk-behind
Voltage
12 V
Applications
handling, storage
Other characteristics
straddle
Carrying capacity

1,200 kg
(2,645.5 lb)

Lifting height

Min.: 2,490 mm
(98.03 in)

Max.: 3,590 mm
(141.34 in)

2,430 mm
(95.67 in)

Height of mast when lowered

Min.: 1,856 mm
(73.1 in)

Max.: 2,406 mm
(94.7 in)

1,856 mm
(73.1 in)

Height of mast when raised

Min.: 3,071 mm
(120.91 in)

Max.: 4,171 mm
(164.21 in)

3,071 mm
(120.91 in)

Overall width

1,135 mm, 1,235 mm, 1,335 mm
(44.7 in, 48.6 in, 52.6 in)

Overall length

1,653 mm
(65.1 in)

Fork width

100 mm
(3.9 in)

Fork length

1,070 mm
(42.13 in)

Fork thickness

35 mm
(1.38 in)

Fork spacing

Min.: 200 mm
(7.87 in)

Max.: 760 mm
(29.92 in)

Turning circle radius

1,477 mm
(58.1 in)

Battery capacity

85 Ah

Motor power traction

0.75 kW
(1.02 hp)

Motor power lifting

2.2 kW
(2.991 hp)

Travel speed

4.2 km/h, 4.5 km/h
(2.61 mph, 2.8 mph)

Lifting speed

0.1 m/s
(0.328 ft/s)

Weight

636 kg
(1,402.14 lb)

Description

ESD122, 1.2T electric wakie straddle stacker, is a brilliant adjustable straddle staker commonly used for low to mid level selective racking applications. This straddle stacker is ideal for versatile pallets and able to overcome the challenges of efficiently moving and storing products in limited space. ESD122 features superior stability for daily operation safety due to its strong chassis and rigid mast. Equipped with two 12V/85AH maintenance free AGM batteries and integrated charger as standard, ESD122 is an absolute hassle-free helper to supply flexibility of charging at all warehousing environment to maximize work efficiency. APPLICATION ESD122 is an ideal solution to business involving various pallets due to its full compatibility. The straddle legs allow the forks to go very close to the ground and the adjustable straddle legs make it possible to apply to different sized pallets stacking and operators can reduce the leg span for efficient storage. The maintenance-free batteries and integrated charger maximize the flexibility of charging and the cost saving for daily operation and maintenance. ADJUSTABLE STRADDLE-OUTRIGGER DESIGN ESD122 adopts adjustable straddle-outrigger design to stack various kinds of pallets, making it a perfect tool to cover multi handling tasks in warehouses. The forks of ESD122 is able to go very close to the ground and move right under the pallets without the bottom boards getting in the way. Operators are able to stack various sized pallets and reduce the leg span for efficient storage in a limited space.
