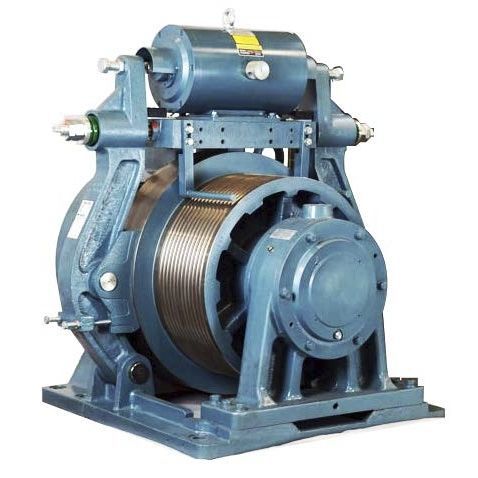

AC motor ACPM 570 Series

asynchronousmaintenance-freepermanent magnet

Unlike traditional induction motors that lose efficiency at lower speeds, Imperial Electric gearless AC machines provide unusually capable low speed, high torque operation -and consume up to 40% less power than traditional asynchronous motors. Imperial Electric gearless AC machines are also noticeably quieter than the competition and are nearly maintenance-free. With a compact, sleek design and extreme reliability, it is no wonder that the Imperial Electric Gearless ACPM Machines are a favorite in the industry. All models are UL/CSA CUS Certified. The ACPM 570 and 570 XL Double Wrap AC machines are our newest products - with speeds ranging from 100 to 800 (1:1) or 100 to 700 (2:1) depending on model. MODEL 570 • Capacity: 2,750 lbs. (1:1) or 5,000 lbs. (2:1) • Speeds ranging from 100 to 800 fpm 1:1 roping • Speeds ranging from 100 to 700 fpm 2:1 roping • U-groove, 20-inch drive sheave • Up to 6- 1/2" ropes, double wrap • Sheave shaft load: 40,000 lbs. • Dual independent brake system holds 125% rated capacity • Overhead application only • M/C weight: 3,000 lbs. MODEL 570-XL • Capacity: 4,500 lbs. (1:1) or 8,000 lbs. (2:1) • Speeds up to 700 fpm • U-groove, 20-inch drive sheave • Up to qty 8- 1/2" ropes, double wrap • Sheave shaft load: 50,000 lbs. • Dual independent brake system holds 125% rated capacity • Overhead application only • M/C weight: 3,950 lbs.
