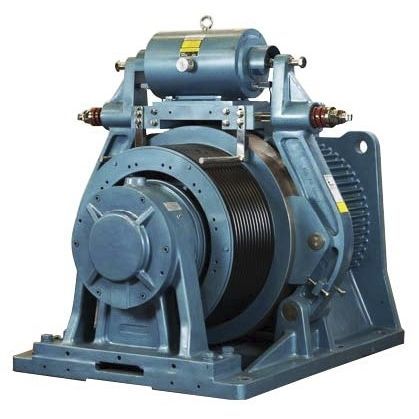

AC motor ACPM 700 Series

asynchronousmaintenance-freepermanent magnet

Unlike traditional induction motors that lose efficiency at lower speeds, Imperial Electric gearless AC machines provide unusually capable low speed, high torque operation -and consume up to 40% less power than traditional asynchronous motors. Imperial Electric gearless AC machines are also noticeably quieter than the competition and are nearly maintenance-free. With a compact, sleek design and extreme reliability, it is no wonder that the Imperial Electric Gearless ACPM Machines are a favorite in the industry. All models are UL/CSA CUS Certified. Imperial Electric Frame 700 machines feature an extended chassis and a heavy-duty outboard bearing support to easily accommodate the special load characteristics required for double-wrap roping configurations. With a maximum sheave shaft load of up to 55,000 lbs., power ratings to 115HP, and dual-coil, independent brakes applying 6,000 N-m torque per side, these machines offer up to 5,000 lbs. capacity roped 1:1 or 9,000 lbs. capacity roped 2:1 with maximum speeds of 1,400 and 700 fpm, respectively. The 700 series is fantastic for use with high rise or heavy loads, overhead basement and side pull applications, and for modernization and new construction alike. Specifications: • Capacity: 5,000 lbs., 1:1 or 9,000 lbs. 2:1 • Speeds ranging from 100 to 1400 fpm - 1:1 700 fpm 2:1 • U-groove, 25 inch drive sheave • Sheave shaft load: 55,000 lbs. • Up to 6 -5/8" ropes, double wrap OR 7- 1/2" ropes, double wrap • Overhead, Basement & Side pull application • Dual independent brake system holds 125% rated capacity • M/C Weight: 5,780 lbs.
