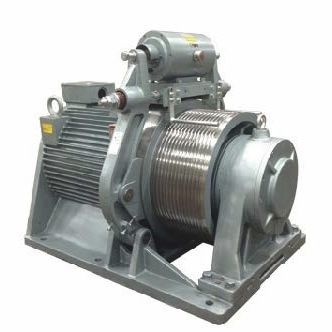

AC motor ACPM 800 Series

asynchronousmaintenance-freepermanent magnet

Unlike traditional induction motors that lose efficiency at lower speeds, Imperial Electric gearless AC machines provide unusually capable low speed, high torque operation -and consume up to 40% less power than traditional asynchronous motors. Imperial Electric gearless AC machines are also noticeably quieter than the competition and are nearly maintenance-free. With a compact, sleek design and extreme reliability, it is no wonder that the Imperial Electric Gearless ACPM Machines are a favorite in the industry. All models are UL/CSA CUS Certified. Imperial Electric’s 800 Frame series has the capacity to lift 2,000 to 5,350 lbs. at speeds to 1,600 fpm with 1:1 roping or 3,000 to 10,000 lbs. at speeds to 800 fpm with 2:1 roping. Precise acceleration, deceleration, and contract speed control. Disassembly options are available and perfect for high rise or heavy load applications in new construction or modernization of existing structures. Specifications: • Up to 5,350 lbs. capacity up to 1,600 fpm, 1:1 roping • Up to 6,000 lbs. capacity up to 450 fpm, 1:1 roping (SPL 808OB) • 10,000 lbs. capacity up to 800 fpm, 2:1 roping • U-groove for double wrap traction • 26.5 inch drive sheave • Up to 8 - 1/2" or 7- 5/8" ropes • Sheave shaft load: 66,000 lbs • Dual independent brake system holds 125% rated capacity • Overhead, basement, and side pull application • Machine weight: 6,800 lbs.
