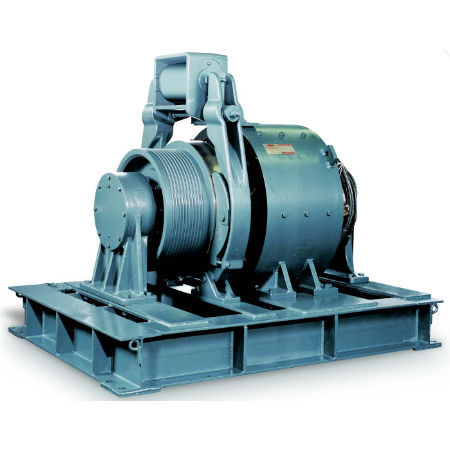

DC motor 590 series

synchronous220 Vpermanent magnet

Quiet Operation, heavy-duty construction, and extreme reliability have confirmed the Imperial Electric Gearless DC Machines to be a favorite in the industry. Our Frame 590 series features precise acceleration, deceleration, and contract speed control. With low noise and cooler operations, this highly efficient unit is also eco-friendly, with no oil lubricant needed. This series is UL/CSA CUS Certified and is a direct drive DC gearless replacement. Models available: 591, 593, 596, 598. Specifications: • 50,000 lbs. sheave shaft load, 25,000 lbs. suspended load • 1:1 or 2:1 roping • U-groove for double wrap traction or V-groove for single wrap traction • Up to 3/4-inch rope diameter • 1000 fpm (5 m/s) for up to 4,500 lbs. (2,036 kg) car capacity for 1:1 roped applications • 500 fpm (2.5 m/s) for up to 8,500 lbs. (3,864 kg) car capacity for 2:1 roped applications • 26-, 30- and 33-inch drive sheave Applications: • Modernization • 1:1 or 2:1 roped installations • High rise or heavy load • Overhead, Basement and Sidepull applications
