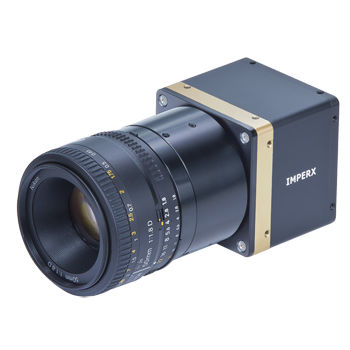

Analog camera B3320

spark optical emissionfull-colorCCD

The B3320 is an advanced high-speed progressive scan, fully programmable CCD camera designed for imaging applications that require high quality images with powerful features and flexibility. The camera has a small size, light weight, and is built around the TRUESENSE KAI-08050 Interline Transfer CCD image sensor which provides an image resolution of 3296 x 2472 and delivers up to 10.6 frames per second with a 4/3" optical format. B3320 is available with Camera Link® Base (PoCL), GigE Vision®, PoE and CoaXPress output. • Resolution : 3296 x 2472 : • Maximum Resolution : 3312 x 2488 : • Sensor : KAI-08050, CCD : • Sensor Format : 4/3" optical format : • Interfaces : Camera Link® Base (PoCL), GigE Vision, PoE, CoaXPress : • Frame Rate Standard Clock : 40 MHz / 8.5 fps : • Frame Rate Overclocked : 50 MHz / 10.6 fps : • Output Format : Mono CCD: 8, 10, 12,14-bit (Single only) : • : Color CCD: 8, 10, 12, RGB 24 (Bayer only) : • : TRUESENSE Sparse CFA : • Gain Control : Preamplifier, standard (0-36dB), digital : • Offset : Analog and digital : • RGB Gain and Offset : Manual : • Shutter Speed : 1/500,000 to 1/8 sec (nom) : • Exposure Control : Manual, auto, external : • Double Trigger (PIV) Interframe : 200 nanoseconds : • External Inputs/Outputs : 2 IN, 2 OUT : • Strobe Output : 2 strobes, programmable position and duration : • Internal DDR Memory : 2Gb (256 MB) : • On Board FIFO (GEV & PoE) : 1Gb (128 MB) : • Vibration, Shock : 100g (20-200) HZ XYZ, 1000g : • Environmental : -40˚C to +85˚C Operating, -50˚C to +90˚C Storage : • MTBF : > 660,000 hours @ 40˚C : • Regulatory : FCC 15 part A, CE, RoHS :
