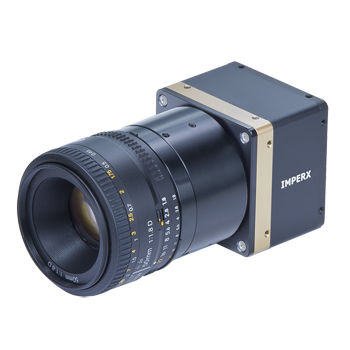

Analog camera B4020

spark optical emissionfull-colorCCD

The B4020 is an advanced high-speed progressive scan, fully programmable CCD camera designed for imaging applications that require high quality images with powerful features and flexibility. The camera has a small size, light weight, and is built around the TRUESENSE KAI-11002 Interline Transfer CCD image sensor which provides an image resolution of 4008 x 2672 and delivers up to 6.4 frames per second with a 43.3mm optical format. B4020 is available with Camera Link® Base (PoCL), GigE Vision®, PoE and CoaXPress output. • Resolution : 4008 x 2672 • Maximum Resolution : 4032 x 2688 • Sensor : KAI-11002, CCD • Sensor Format : 43.3mm optical format • Interfaces : Camera Link® Base (PoCL), GigE Vision, PoE, CoaXPress • Frame Rate Standard Clock : 30 MHz / 4.8 fps • Frame Rate Overclocked : 40 MHz / 6.4 fps • Output Format : Mono CCD: 8, 10, 12, 14-bit (Single only) • : Color CCD: 8, 10, 12 • Gain Control : Preamplifier, standard (0-36dB), digital • Offset : Analog and digital • RGB Gain and Offset : Manual • Shutter Speed : 1/100,000 to 1/5 sec (nom) • Exposure Control : Manual, auto, external • Double Trigger (PIV) Interframe : 200 nanoseconds • External Inputs/Outputs : 2 IN, 2 OUT • Strobe Output : 2 strobes, programmable position and duration • Internal DDR Memory : 2Gb (256 MB) • On Board FIFO (GEV & PoE) : 1Gb (128 MB) • Vibration, Shock : 100g (20-200) HZ XYZ, 1000g • Environmental : -40˚C to +85˚C Operating, -50˚C to +90˚C Storage • MTBF : > 660,000 hours @ 40˚C • Regulatory : FCC 15 part A, CE, RoHS
