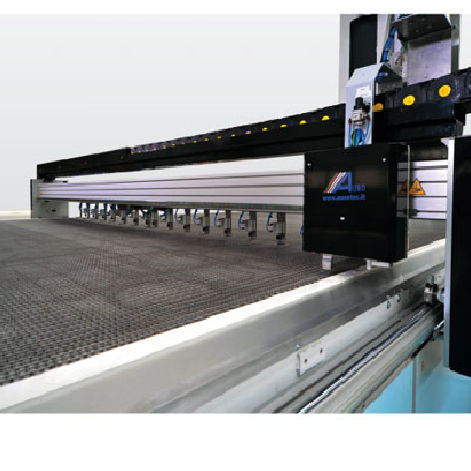

Laser cutting machine LR 50

for fabricsCNCgantry type

Cutting optional with laser with or without round blade Main features: Max effective cutting width of fabrics: 250 to 500 cm Max effective cutting length of fabrics: up to 20 m Height of the workinglevel: 100 cm and changeable on request Automatic embroidery and drawing system of the continuing fabrics without an operater Cutting system with interpolated axes using blades Integrated PC station for calculating the fabrics, archiving of the production types and the network connection CAD for the creation of cutting patterns, optimization of the fabric cutting The exclusive "Exactor" video system with camera allows to cut the patterns with optimal centering of the fabric's design. Bar code reader Remote service support via internet Scans old cutting patterns Projection of the cutting patterns Impressive cutting results: White remains white We leave brown edges to the competitors Optimized cooling system from below through a rust-proof honeycomb grid Optimized cooling system from above Know-how of more than 15 years in building of laser cutting machines for highest quality requirements Perfect vaccum system to fix the materials for cutting results ≤ 1mm diagonal Take-off the cloth to be cut As shown in the image, the material can easily be taken off from the roll - automatically. On request we can deliver the equipment up to 5 m width, also with a conveyor made out of a rust-proof "honeycomb grid". Our consultant engineer is looking forward to provide advice to you.
