Ground penetrating radar CrossOver series

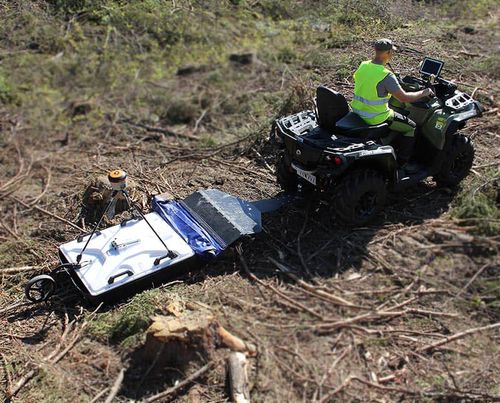

CrossOver Series Series of Ground Penetrating Radar systems CrossOver is a general-purpose series of GPR-systems, in three different housings and with 6 separate frequencies in the range 70- to 800MHz. It is designed for the professional-geo community. It may be pulled or pushed in dedicated carts, by hand or by means of vehicles, at any speeds. Each system comes as a true-dual frequency antenna with inbuilt control electronics and GPS-modules. The systems are controlled via Android-pads over a wireless link. It is based on real-time-technology which gives excellent depth penetration and bandwidth. Low power consumption gives 7 hours operational time, on one battery. CO1760 It incorporates two channels with ultra-wide band frequencies centred around 170 MHz and 600 MHz. Inbuilt GPS-unit* CO730 It incorporates two channels with ultra-wide band frequencies centred around 70 MHz and 300 MHz. Inbuilt GPS-unit. The CrossOver pulling accessories and measuring wheel provides an alternative means to collect data in less accessible areas or where space is limited. Ergonomically designed to provide maximum comfort for the operator even during many hours of use. The pulling kit consists of the pulling rods, chest-harness, waist belt. The CrossOver push cart provides an efficient means to move the antenna over a range of surfaces for the rapid collection of 2D GPR data. The handle assembly is fully foldable to reduce the physical footprint, making transportation and storage much more efficient. The push cart can be equipped with external RTK GPS antennas or Total Station positioning.
