Mapping ground penetrating radar Raptor series

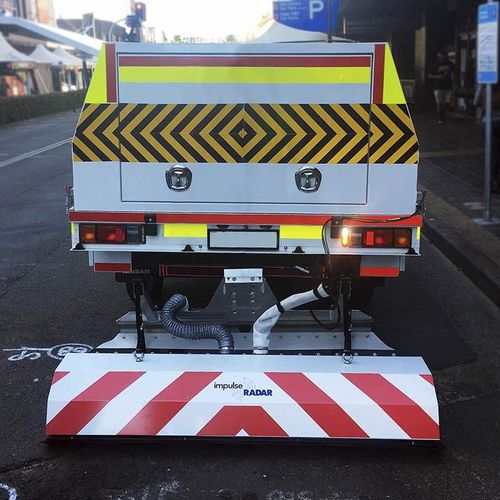

Raptor High Speed 3D Ground Penetrating Radar Array Raptor is a state-of-the-art high-speed 3D-GPR Array enabling the very fast collection of 3D GPR data, at speeds in excess of 130 km/hr (80 miles/hour), @ 5 cm point intervals. Raptor is capable of survey speeds that eliminate the need for traffic control and safety vehicles. Conventional systems typically operate at no more than 30 km/hr, with similar settings. Raptor is arguably the best 3D GPR Array available today Raptor-45 450 MHz frequency Raptor-45 has a center frequency of 450MHz. Arrays configured with Raptor 45-units are suitable for utility mapping, archaeological investigations and railway investigations, among other applications. Raptor-80 800 MHz frequency Raptor-80 has a center frequency of 800MHz and is hence suitable for applications where higher resolutions are needed, roadbed layers, concrete scanning etc. Clients choose the number of receivers/transmitters they need for their application and may build their own carrier solutions. In order to aid in this process we provide two example solutions; one push cart which fits an 8 channel array and one vehicle carrier which fits 18 channels (Raptor-45 antennas). The robust and stable construction enables simple connection to suitable survey vehicles for fast data collection in normal traffic flows as posted speed limits. Collect up to 18 channels (450 MHz) in a single swathe with one pass to reduce time and costs.
