Deep hole drilling and milling machine MF1000/2F
CNCcolumn typerotating table

Deep hole drilling and milling machine - MF1000/2F  - IMSA srl - CNC / column type / rotating table
Deep hole drilling and milling machine - MF1000/2F  - IMSA srl - CNC / column type / rotating table
Deep hole drilling and milling machine - MF1000/2F  - IMSA srl - CNC / column type / rotating table - image - 2
Deep hole drilling and milling machine - MF1000/2F  - IMSA srl - CNC / column type / rotating table - image - 3
Deep hole drilling and milling machine - MF1000/2F  - IMSA srl - CNC / column type / rotating table - image - 4
Deep hole drilling and milling machine - MF1000/2F  - IMSA srl - CNC / column type / rotating table - image - 5
Deep hole drilling and milling machine - MF1000/2F  - IMSA srl - CNC / column type / rotating table - image - 6
Deep hole drilling and milling machine - MF1000/2F  - IMSA srl - CNC / column type / rotating table - image - 7
Deep hole drilling and milling machine - MF1000/2F  - IMSA srl - CNC / column type / rotating table - image - 8
Deep hole drilling and milling machine - MF1000/2F  - IMSA srl - CNC / column type / rotating table - image - 9
Deep hole drilling and milling machine - MF1000/2F  - IMSA srl - CNC / column type / rotating table - image - 10
Deep hole drilling and milling machine - MF1000/2F  - IMSA srl - CNC / column type / rotating table - image - 11
Add to favorites
Compare this product


Characteristics

Type
CNC
Structure
column type, rotating table, gantry type
Applications
deep hole, for molds
Number of spindles
2-spindle
Drilling diameter

Min.: 4 mm
(0.16 in)

Max.: 25 mm
(0.98 in)

Power

11,000 W, 13,000 W

Rotational speed

6,000 rpm
(37,699.1 rad.min-1)

Description

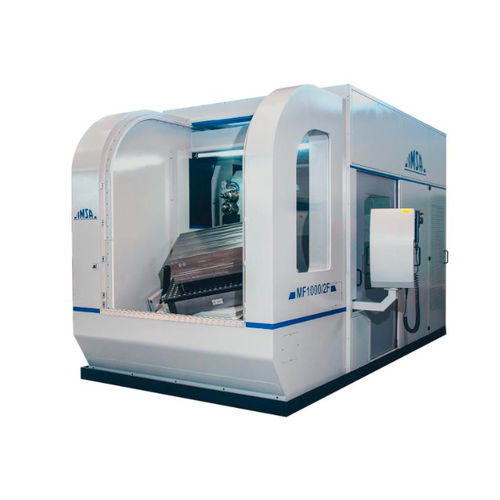

The IMSA gun drilling and milling machine MF1000/2F is suitable for molds/blocks up to 5 tonnes. A workpiece having a diameter as large as 1600mm can rotate inside the machine structure. In this version, the machine is equipped with a rotary-tilting table, size 1000x1000mm, load 5000kg, rotation: infinite position 360000pos/rev., tilting movement: infinite position 22,5…-22,5° radial resolution 0,001°. This enables compound angle machining. Drilling depth in single operation: 1000 mm. Drilling method: gun drill. Deep drilling spindle, power 11 kW, 6000 rpm, for gun drilling Ø 4-25 mm, max. 32 mm counterboring or in short-chipping materials. This spindle is generally utilized to drill water lines in molds. Specific IMSA functions for deep drilling process control: – Electronic workpiece approach – Electronic check against gun drill breaking, by reading the cutting effort – Special coordinate transformation function for angled machining. Temperature, pressure and oil cleanliness are fundamental parameters to ensure continuous trouble-free gun drilling operations. For this reason the MF1000/2F is equipped with the best solutions that can automatically manage those three parameters to the most suitable value: – for oil supply to the gun drill: two different high-pressure pumps; – for oil clarification: a complete filtering system; – for oil cooling: a heat exchanger (chiller). The chiller is on a parallel oil circuit, and can be flexibly positioned around the machine. Chip conveyor as standard equipment.
