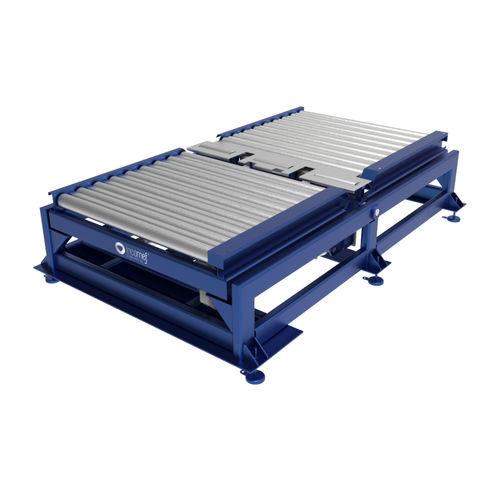

Tilting table

Details These equipment are designed to allow the rotation of high volumes / high loads. They can also be used as a complementary tool to other equipment and integrate production lines. They have very versatile characteristics allowing the movement of simple and light loads but also of bulky and heavy loads. Technical characteristics The structure consists of standard profiles, rigidly welded; The cylinders, made of steel tube with hard chrome plated piston rods, are equipped with anti-rupture valve; The functioning of these tilting machines can be electro-hydraulic or 100% electric: Electro-hydraulic drive functioning type: the hydraulic unit consists of a sealed tank, where the electric motor, hydraulic pump, valves and filters are housed in; 100% electric drive functioning type: geared motor unit is sized according to load / volume needs to be moved; Command push buttons and limit switches complete the activation of the equipment which can be automatic or “dead man” type; Following Machinery Directive 2006/42/EC requirements; Electrical switchboard according to standard EN 60204-1.
