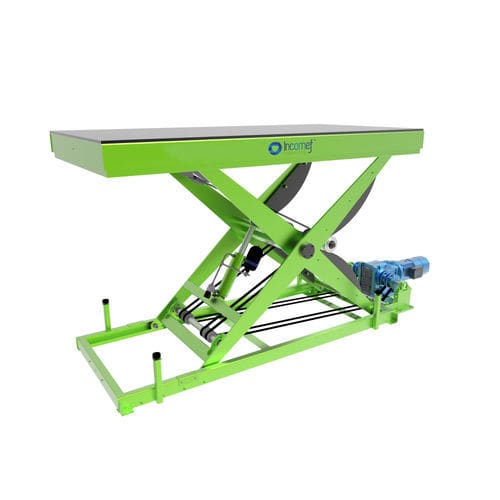

Scissor lifting table MEXE series

electricstationary

Electric Scissor Lifting Table Details This fully electric driven equipment is suitable for lifting goods usually serving not more than 2 fixed landings. The equipment selection is made according to the required lifting stroke, load and dimensions. This solution offers an interesting alternative when compared with other different lifting platforms. It can also be used as an additional tool to other equipment. It has very versatile technical features, allowing not only the movement of simple and light loads but also bulky and heavy ones. Technical characteristics Its structure is made of standard profiles, rigidly welded; Their scissors are made of steel plate, forming an articulated system to assure its vertical movement; The flat belts included have tension elements which are designed to work as specified payloads and that allow the design of a quick, quiet and safe lifting table; The loading platform’s plate is made of composite material in which one of the fibrous layers has conductive materials, for monitoring loads. This loading plate is lighter than those made of steel, thus reducing the weight by 70%; This type of equipment is driven by a geared motor power unit; This type of equipment is driven by a geared motor power unit; • Following Machinery Directive 2006/42/EC and the MEXE SERIES harmonised standard EN 1570 requirements; Electrical switchboard according to standard EN 60204-1.
