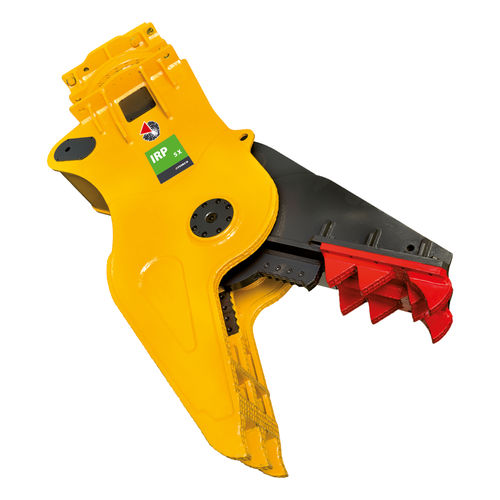

Hydraulic pulverizer IRP 5 X

for excavators

Excavator weight - 5 ÷ 12 tons Max opening - 500 mm Jaw width - 295 mm Oil delivery - 50 ÷ 120 l/min Maximum working pressure - 300 bars Maximum clamping force at tip - 40 tons Maximum clamping force at shears - 130 tons Shear length - 80 mm Max cutting diameter - 35 mm Min. closure time - 1.5 s** Min. opening time - 1 s Hydraulic connections - 1/2” Maximum rotation flow - 10 l/min Maximum rotation pressure - 110 bars Hydraulic connections for rotation - 3/8” Mounting bracket compatibility - HP 900 Type of carrier - - Compact excavator - Wheeled excavator Pulverizers IFP and IRP Series By using the latest technologically advanced materials, such as special extra-strength HARDOX® alloy steel, Indeco pulverizers are specifically designed to withstand high levels of pressure, wear and abrasion, and prolonged use regardless of jobsite conditions.
