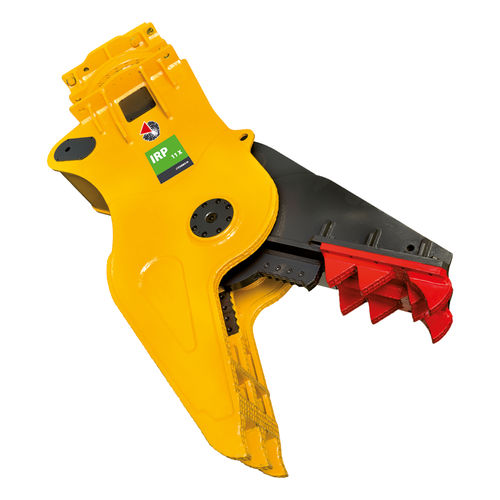

Hydraulic pulverizer IRP 11 X

for excavators

Excavator weight - 10 ÷ 25 tons Max opening - 660 mm Jaw width - 340 mm Oil delivery - 80 ÷ 200 l/min Maximum working pressure - 350 bars Maximum clamping force at tip - 50 tons Maximum clamping force at shears - 170 tons Shear length - 100 mm Max cutting diameter - 40 mm Min. closure time - 2 s** Min. opening time - 1 s Hydraulic connections - 3/4” Maximum rotation flow - 20 l/min Maximum rotation pressure - 110 bars Hydraulic connections for rotation - 1/2” Mounting bracket compatibility - HP 1200 Type of carrier - - Compact excavator - Wheeled excavator Pulverizers IFP and IRP Series By using the latest technologically advanced materials, such as special extra-strength HARDOX® alloy steel, Indeco pulverizers are specifically designed to withstand high levels of pressure, wear and abrasion, and prolonged use regardless of jobsite conditions.
