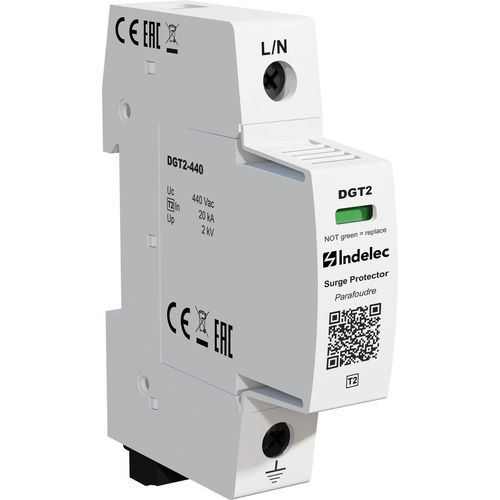

Type 2 surge arrester DGT2 440for power suppliessingle-poleMOV
Add to favorites
Compare this product
Characteristics
- Type
- type 2
- Applications
- for power supplies
- Other characteristics
- single-pole, MOV, N-PE, DIN rail
- Voltage
440 V
- Primary current
20,000 A
Description
Désignation Part number
Electrical characteristics Technology Number of pôle Network nominal voltage Protection mode
Max. AC operating System Temporary Over Voltage (TOV) Temporary Over Voltage (TOV) Leakage current Follow current Nominal discharge current 15 x 8/20ps impulses Max. discharge current Max. withstand @ 8/20ps Protection level (@ln) Admissible short-circuit current
Associated disconnectors Thermal disconnector Fuses
Installation ground fault breaker
DGT440
P8433H
MOV 1 pôle 230/400V IT-TN Cl mode
TT -TNS C2 mode with DGE module for N/PE 440Vac
580 Vac/5 s withstand
770 Vac/120mn disconnection
<1 ma
None
lOkA
40KA
1.5kV 25 000 A
internai
Fuses type gG - 50 A max. Type "S" or delayed
