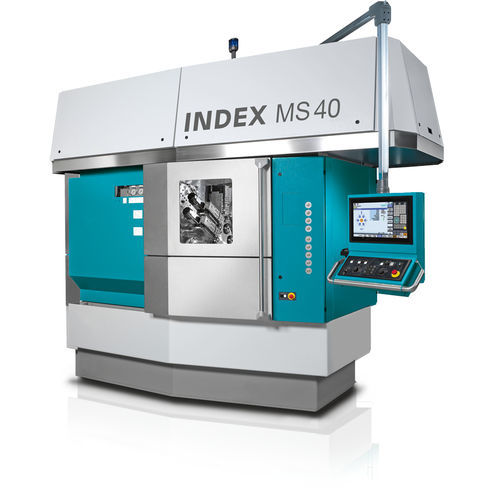

CNC turning machine MS40-6

3-axismulti-spindle10 tools

Highly-dynamic slides with sliding guide (X-axis) Non-wearing Z-axis due to quills with hydrodynamic support Front-opening machine for bar machining Chuck part machining with loading and unloading by robots or linear handling units Maximum of 6 tools for rear end machining per swiveling synchronous spindle Already included: the operating system iXpanel i4.0 ready with 18.5” touch screen and Siemens S840D sl The machine design Up to 6 tools, of which 2 are live Fast swiveling motion and hydraulic locking of the swiveling synchronous spindle via a Hirth coupling Favorable chip flow due to machining outside the main working area Numerous possibilities using live tools in conjunction with C- and Y-axes as well as an electronic shaft The dual 3-spindle machine Additional part production time reduction due to simultaneous manufacturing of 2 workpieces 2 swiveling synchronous spindles 2 back-boring slides (option) with 3 tools each, of which up to 2 are live With the same configuration level as a 6-spindle machine with simultaneous reverse-side machining in two spindle positions Front end machining on 4 main spindles Simultaneous cutoff-side machining on 2 swiveling synchronous spindles
