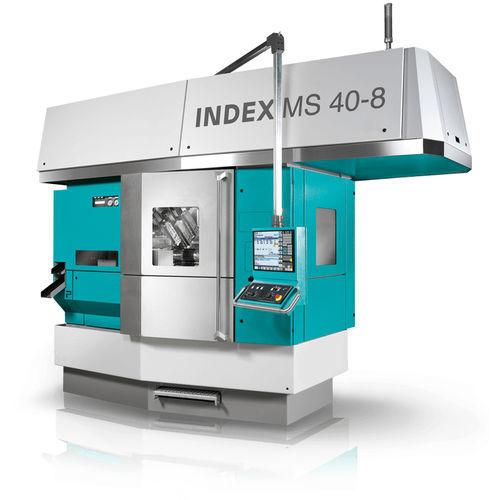

CNC turning machine MS40-8

2-axis3-axismulti-spindle

Highly-dynamic slide with sliding guide (X-axis) Non-wearing Z-axis dueto quills with hydrostatic support Front-opening machine for bar machining Chuck part machining with loading and unloading by robots Directed part discharge through linear handling Extremely fast swiveling synchronous spindles with C-axis Swing arm is locked by three-piece Hirth coupling in machining position, ensuring maximum rigidity The thermostable spindle Our trade mark – the spindle drum The compact spindle drum ensures maximum precision in each position through the use of a three-piece Hirth coupling. The basis is composed of 8 fluid-cooled motorized spindles integrated in the spindle drum. Infinitely variable speed control, (high dynamics) compact design,maintenance-free and the latest synchronous drive technology, as a guarantee for high-precision workpieces. Independent speeds During machining, the optimal speed, which can still be varied during cutting, can always be programmed for each spindle position and each cutting edge of the tool. The result is better chipping, maximum surface quality, short part production times, and longer tool service life. You can also machine high-strength materials that up to now were hardly suitable for multi-spindle machines. It is also possible to make speed changes during drum indexing, thus avoiding any additional secondary processing times. 14 tool carriers with 1, 2 or 3 axes Back-drilling slide with 7 tools thereof max. 4 driven for face machining Multiple occupancy of the slides possible Only the tool holder determines the machining direction (inside or outside) Cross machining with driven tools
