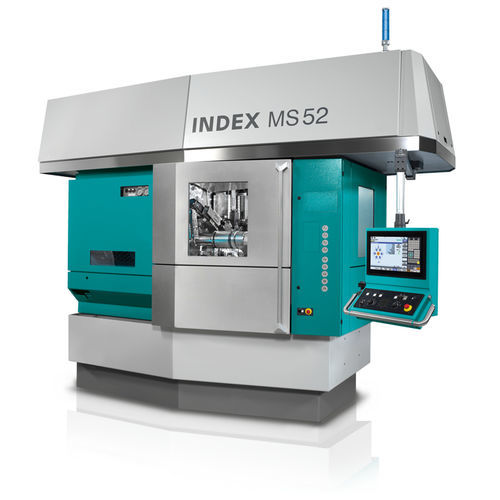

CNC turning machine MS52-6

hydrostaticmulti-spindlemilling

Highly-dynamic slides with sliding guide (X-axis) Non-wearing Z-axis due to quills with hydrostatic support Chuck part machining with loading and unloading by robots or linear handling units Extremely fast swiveling synchronous spindles with C-axis Swing arm is locked by three-piece Hirth coupling in machining position, ensuring maximum rigidity Maximum of 6 tools for rear end machining per swiveling synchronous spindle Already included: the operating system iXpanel i4.0 ready with 18.5” touch screen and Siemens S840D sl Automated workpiece handling with robot ensures optimum production Flexible, position-oriented loading and unloading in all 6 spindle positions by a robot integrated in the work area featuring a double gripper Damage-free feed and discharge even for delicate parts Short loading and unloading times, including in conjunction with 2-fold or 4-fold gripper for double 3-spindle production Ideally suited for pick-and-place as the interface to conveyor belts or palletizing systems Machining of preshaped parts, forged or extruded parts up to approx. 125 mm The swivel disk: Transfer to the peripheral handling interface Standardized interface (both mechanical and electrical) Closed system and, thus, hardly any oil discharge Milling with live tool in the following variants: Side milling cutter in conjunction with C-axis operation (transmit function) End milling cutter in conjunction with Y-axis operation Plunge milling Coupled with electronic precision Requirements with maximum stability Toothing in correct position relative to other surfaces or shaped elements Any angular offset can be programmed Greater tool service life due to shifting with Y-axis
