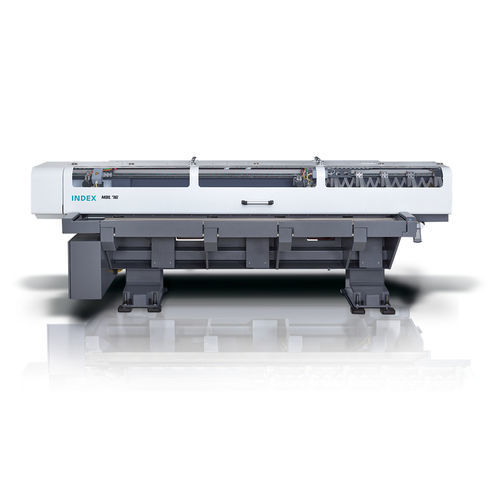

Loading system MBL76

Bar loader for single-spindle lathes Shortest setup times & Ergonomic accessibility Machine-independent control Shortest setup times through good and ergonomic accessibility and quick-change guide bushings Convenient loading height, loading during machining possible Mineral cast body for a very high degree of rigidity and damping Purely electrical, thus no hydraulic and pneumatic connections required Shorter design than comparable magazines The magazine is available in two bar lengths (3.2 m and 4.2 m) Bar loader for best turning results Backlash-free guidance of the bar in rolling bearings, with diameter-specific plastic sleeves Top machining results in terms of surface and tolerances – even with shaped material Precise alignment of the bar stock to the spindle center Fast bar change through intelligent process flow and fast axis movements Automated measurement of bar length Round, dia. mm 10 - 76 Hexagon, size mm 9 - 65 Square, a/f mm 8 - 53 Bar capacity max., for bars with Ø up to 50 mm 11 Bar capacity max., for bars with Ø > 50 mm 6 General Rapid traverse m/min 30 Operational speed, infinetely variable m/min 1-10 Feed force N 1,500
