CNC turning machine MS16 series
2-axismulti-spindle12 tools

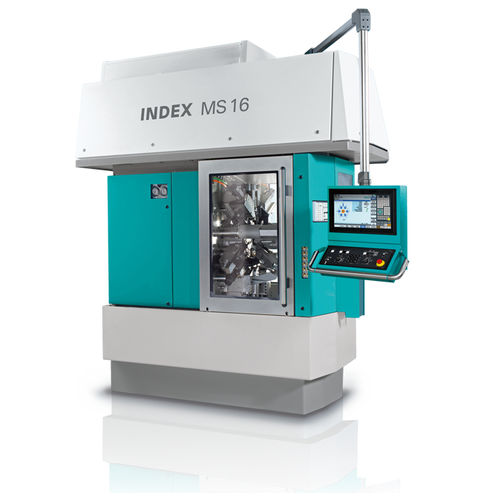

CNC turning machine - MS16 series - INDEX FRANCE - 2-axis / multi-spindle / 12 tools
CNC turning machine - MS16 series - INDEX FRANCE - 2-axis / multi-spindle / 12 tools
CNC turning machine - MS16 series - INDEX FRANCE - 2-axis / multi-spindle / 12 tools - image - 2
CNC turning machine - MS16 series - INDEX FRANCE - 2-axis / multi-spindle / 12 tools - image - 3
CNC turning machine - MS16 series - INDEX FRANCE - 2-axis / multi-spindle / 12 tools - image - 4
CNC turning machine - MS16 series - INDEX FRANCE - 2-axis / multi-spindle / 12 tools - image - 5
CNC turning machine - MS16 series - INDEX FRANCE - 2-axis / multi-spindle / 12 tools - image - 6
CNC turning machine - MS16 series - INDEX FRANCE - 2-axis / multi-spindle / 12 tools - image - 7
CNC turning machine - MS16 series - INDEX FRANCE - 2-axis / multi-spindle / 12 tools - image - 8
CNC turning machine - MS16 series - INDEX FRANCE - 2-axis / multi-spindle / 12 tools - image - 9
CNC turning machine - MS16 series - INDEX FRANCE - 2-axis / multi-spindle / 12 tools - image - 10
Add to favorites
Compare this product


Characteristics

Control type
CNC
Number of axes
2-axis
Number of spindles
multi-spindle
Number of tool stations
12 tools
Applications
drilling
Performance
high-performance
Associated function
boring, grooving
Diameter

16 mm, 22 mm
(0.63 in, 0.87 in)

Spindle speed

10,000 rpm
(62,831.853 rad.min-1)

Bar capacity

16 mm, 22 mm
(1 in, 1 in)

Axe X

14 mm, 45 mm, 94 mm
(1 in, 2 in, 4 in)

Axe Z

70 mm, 79 mm, 140 mm
(3 in, 3 in, 6 in)

Nominal power

8.7 kW, 9.2 kW, 12 kW, 15 kW, 49 kW
(11.8 hp, 12.5 hp, 16.3 hp, 20.4 hp, 66.6 hp)

Maximum torque

10 Nm, 11 Nm, 14 Nm, 18 Nm
(7 ft.lb, 8 ft.lb, 10 ft.lb, 13 ft.lb)

Overall lenght

2,599 mm
(102 in)

Overall width

1,300 mm
(51 in)

Overall height

3,044 mm
(120 in)

Weight

5,200 kg
(11,464 lb)

Description

Grooving slide for maximum cutting performance with minimum machining time Quick tool setup by INDEX W-serration Spindle drum with individual drives of the work spindles Cross-slide for flexible complete machining CNC cutoff slide with extended stroke for rear end machining Highly dynamic synchronous spindle with extremely short acceleration and deceleration times Already included: the operating system iXpanel i4.0 ready with 18.5” touch screen and Siemens S840D sl The machine design With dynamic and diverse machining capabilities at low unit costs Fast synchronous spindle for rear end machining Several tools per cross-slide possible Variable use of tool carriers, internal-external, stationary or live C-axis machining possible in every spindle position Polygon turning and other machining options • Synchronized spindle in position 5.1/6.1 • Cutoff and back-boring slide in position 5.2/6.2 • Grooving or drilling slide 1x selectable per spindle position (1 to 4) • Extension version with separate cutoff slide 5.0/6.0 and pure back-boring slide 5.2/6.2 • Cross slide 1x per spindle position (1 to 4 selectable) • Double 3-spindle machining is possible on the INDEX MS16-6 plus Polygonal turning Polygonal turning is possible in longitudinal and grooving processes, even in high-alloy materials Example: Hexagonal turning i=2:1, referring to the speed ratio of the cutter head to the workpiece Milling Milling with live tool, also in conjunction with C-axis mode (Transmit). Elliptical deburring Uniform deburring (even chip removal) of cross-drill holes based on interpolation of the C-axis, X-axis, and Z-axis with live tool.
