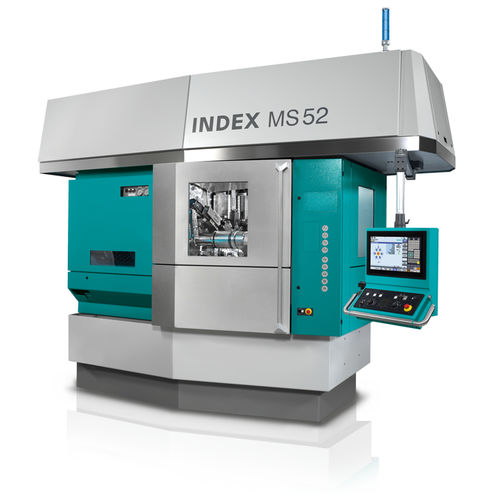

CNC turning center MS52-6

3-axishydrostaticmulti-spindle

Highly-dynamic slides with sliding guide (X-axis) Non-wearing Z-axis due to quills with hydrostatic support Chuck part machining with loading and unloading by robots or linear handling units Extremely fast swiveling synchronous spindles with C-axis Swing arm is locked by three-piece Hirth coupling in machining position, ensuring maximum rigidity Maximum of 6 tools for rear end machining per swiveling synchronous spindle Already included: the operating system iXpanel i4.0 ready with 18.5” touch screen and Siemens S840D sl Robot as productivity factor Automated workpiece handling with robot ensures optimum production Flexible, position-oriented loading and unloading in all 6 spindle positions by a robot integrated in the work area featuring a double gripper Damage-free feed and discharge even for delicate parts Short loading and unloading times, including in conjunction with 2-fold or 4-fold gripper for double 3-spindle production Ideally suited for pick-and-place as the interface to conveyor belts or palletizing systems Machining of preshaped parts, forged or extruded parts up to approx. 125 mm The swivel disk: Transfer to the peripheral handling interface Standardized interface (both mechanical and electrical) Closed system and, thus, hardly any oil discharge Milling Milling with live tool in the following variants: Side milling cutter in conjunction with C-axis operation (transmit function) End milling cutter in conjunction with Y-axis operation Plunge milling Gear cutting, hobbing Coupled with electronic precision Requirements with maximum stability Toothing in correct position relative to other surfaces or shaped elements
