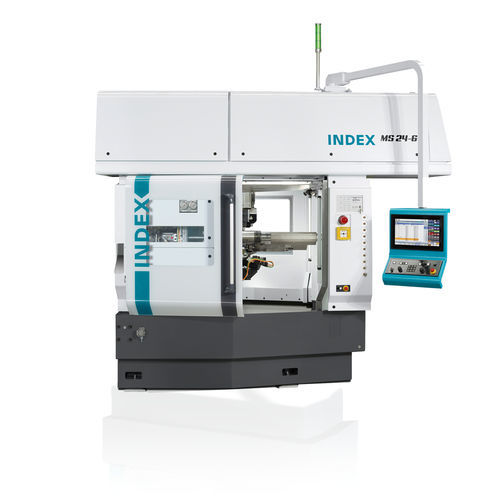

CNC turning machine MS24-6

3-axishydrostaticmulti-spindle

Front-opening machine for bar machining Freely accessible and thus extremely user-friendly Highly-dynamic slides with sliding guide (X-axis) Non-wearing Z-axis due to quills with hydrostatic support Rear-end machining with synchronized spindle 6 tools maximum for backworking Machining options The typical INDEX machine features a tool carrier arrangement in the work area without a sliding block, which allows more than one tool to be used on each spindle. The possible machining operation is thus limited only by the tool holder. As a result, you can specify all production steps in almost all spindle positions. Another advantage: You have an open flow of chips. Maximum productivity and economy of multi-spindle automatics combined with the precision and flexibility of CNC single-spindle automatics is what makes the MS24-6 multi-spindle automatic so successful. Gear cutting, hobbing Coupled with electronic precision Requirements with maximum stability Toothing in correct position relative to other surfaces or shaped elements Any angular offset can be programmed Greater tool service life due to shifting with Y-axis Milling Milling with live tool in the following variants: Side milling cutter in conjunction with C-axis operation (transmit function) End mill in conjunction with Y-axis mode Plunge milling Elliptical deburring of cross-drill holes Uniform deburring (even chip removal) of cross-drill holes based on interpolation of the C-axis, X-axis, and Z-axis with live tool
