Visualization software PROnetplan V2

creationoptimizationplanning

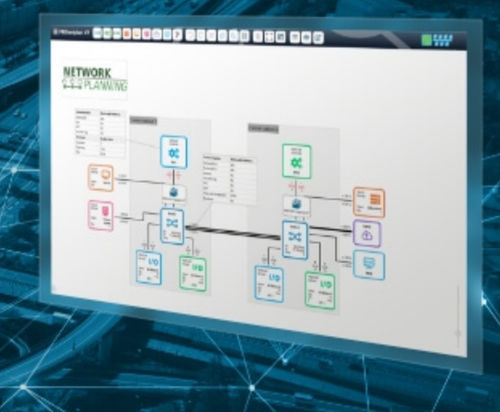

Manufacturer-neutral planning software for industrial networks PROnetplan V2 allows the pre-planning of convergent industrial networks based on Industrial Ethernet and PROFINET. PROnetplan V2 focuses in particular on bandwidth planning. As a result, it can be ensured right from the network planning stage that all applications used in the network can communicate smoothly. Parameters that are taken into account and displayed by PROnetplan V2: Type of application (PROFINET, TCP/IP application) Number of devices / payload Server (communication sink) Data throughput / backplane capacity / required number of ports of the switches used Bandwidth / network load for each connection Update times of the cyclic devices (e.g. with PROFINET) Required number of ports Available line depth Uni- / bidirectional communication, broadcast The advantages at a glance: Convenient network planning via drag-and-drop Create or edit network components and connections in seconds Intuitive network load pre-planning without unnecessarily complicated technical specifications User-friendly planning with freely selectable components without manufacturer restrictions Planning of copper, fibre-optic and WLAN-based network connections Simulate cable routes and dimensioning in advance Creation of communication relationships between components Visualise and plan data volume based on device-specific communication paths
