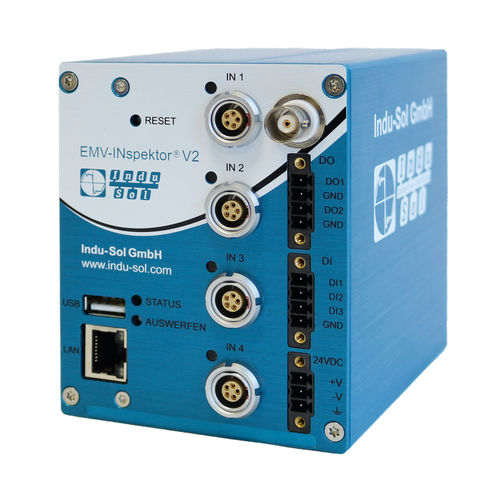

Current monitoring device EMV-INspektor® V2

interferencediagnosticmeasurement

EMV-INspektor® V2 EMC Analysis and Inspection Tool The EMV-INspektor® V2 is a diagnostic tool for detecting electromagnetic disturbances in industrial environments. It works contactlessly and without interruption, monitoring up to four channels. The device records, evaluates, and compares current data, displaying effective values, amplitudes, and frequency components for each channel. Key Features: Measures leakage, shielding, and interference currents Monitors multiple disturbed sections in parallel Continuous condition monitoring and data comparison Web-based interface for visualization and data export via USB or LAN Supports up to 4 measuring adapters for intelligent detection of interference peaks Application Example: It captures current and spectrum on all four channels, helping to identify links between PROFIBUS malfunctions and PE/PA currents. Frequency data indicate possible fault sources, such as frequency inverters. Measurement Areas: EM interference in BUS cables, power supplies, and equipotential bonding Captures currents from 1 mA to 50 A AC Measurement category: 600 V CAT II, 300 V CAT III Connection cable: 1.5 m Analysis Tools: The EMV-INspektor® V2, with EMCheck® ISMZ I, scans currents at 40 or 50 kHz, with data easily accessible via EMCheck® View software. Features: Measures up to 4 cables Scanning at 50 kHz Web interface for real-time data analysis
