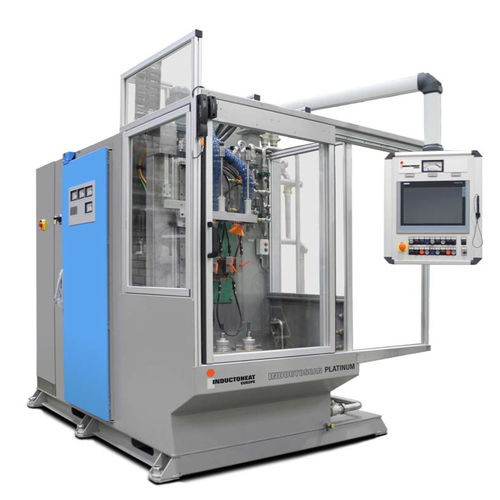

Induction heating system INDUCTOSCAN

The INDUCTOSCAN is a universal vertical scanning machine for hardening or tempering of a wide variety of components. The machine features state of the art transistorized inverter technology, up to two heating stations, control system as well as a recirculating system for power and quench. It is a self-contained system with simple utility connection for fast, low cost installation. FEATURES suitable for hardening a variety of different workpieces scanning distance up to 700 mm clamping length up to 900 mm workpiece weight up to 20 kg programmable vertical axis dimensions (W/L/H): approx. 1800 x 2600 x 2300 mm performance: 100 kW, 50 – 200 kHz ACCESSORIES High pressure coil recirculating pump system Insta-Change coil adapter Servo rotation motors for precision movement Interchange bus adapter Process monitoring signature package Process data archiving Pneumatic load assist vees Pneumatic upper centers Automatic lubrication system Quench filtration upgrade Robotic interlock package 6 Axis 20kg robot
