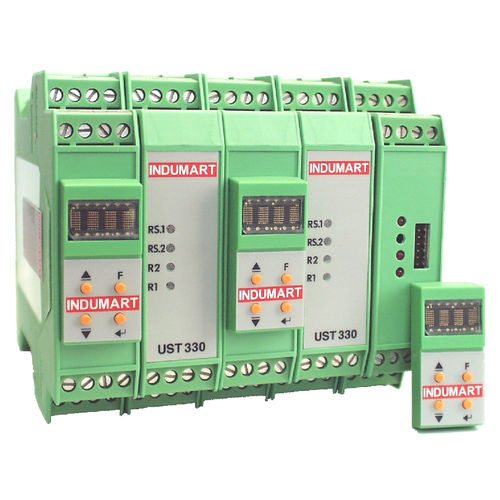

Temperature measurement analog signal transmitter UST330

for sensorsDIN railgalvanically-isolated

TIC, RTD, mV, V, CURRENT & SLIDE-WIRE INPUTS RS-485, CURRENT AND RELAY OUTPUTS GALVANIC ISOLATION: POWER SUPPLY/INPUT/OUTPUT CONFIGURATION BY PLUG-IN MODULE OR BY A COMPUTER SECOND RS-485 FOR NETWORKING (OPTION) AUXILIARY POWER SUPPLY (OPTION) RELAY OUTPUT (OPTION) FIELD RANGE SELECTABLE DIN RAIL MOUNTED COMPACT SIZE The UST330 Rail-mounted Universal Signal Transmitterprovidesaccurateandreproducible conversion of any commonly used thermocouple sensors, Pt-100 RTDs, current, voltage, slide-wire transducer or mV signals to isolated industry standard 4-20 mAor 0-20 mAoutput and simultaneously produces a digital signal via its MODBUS / JBUS-RTU communication. This is an excellent solution for acquisition and centralization problems of most of the signals in the industry. Theversatilityofthissmartuniversaltransmitter results in lower stock holdings and greater operational flexibility. Isolation is a standard feature, removing all ground loop effects as the input is electrically and physically isolated from the output and the power supply. The transmitter can easily be configured through the assigned software and a PC. But, the definite advantage of the UST330 is its capability of also being configured in the field via a plug-in configuration module. The module can be removed in normal use to prevent tampering
