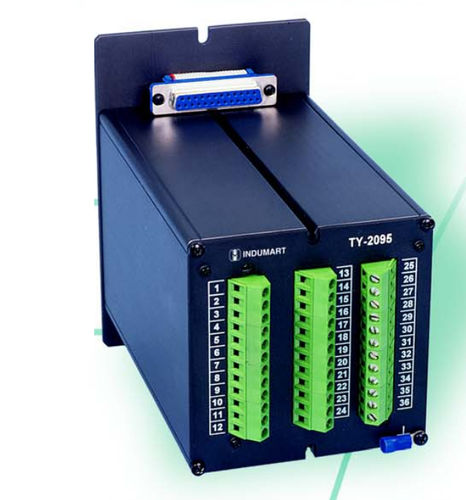

Voltage data acquisition system TY2095

RTD

Ideal for joint use with Virtual Recorder VR-2000. • Indicator models available for: - 12 thermocouple inputs. - 8 RTD inputs. - 12 current inputs 4-20mA. - 12 voltage inputs 1-5Vdc. - Combinations from 2 input types above. • Many optional modules are available: - Up to two SPDT relay alarm modules. - Water-proof front-panel. - RS-232 or RS-422/485 communication. • They perform totalization of eight linear inputs with resetapplied through the front panel buttons. • High-visibility display configurable up to 4 digits and indicationof the channel in a 2-digit display for DMY-2015 Multi-LoopIndicators. • TY-2095 fitting up in DIN rails or surfaces. Its robustconstruction makes it tough enough for the most hostileenvironment. • Power supply from 90 to 240Vac, 50/60Hz or dc levels. • High accuracy. Linearization of RTD, thermocouple and alsosquare root extraction. • DMY-2015: Fully configurable by front-panel push-buttons.ACK button. TY-2095: Programmable by serial communicationor through portable programmer.
