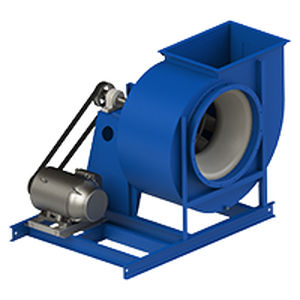

Centrifugal fan BISWventilationsteelindustrial
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Function
- ventilation
- Material
- steel
- Applications
- industrial
- Other characteristics
- flat, with backward-inclined straight blades
- Air flow
Max.: 445,000 ft³/min
(12,600.997 m³/min)Min.: 0 ft³/min
(0 m³/min)
Description
Wheels have flat, backwardly inclined, single thickness blades. Non-overloading high efficiency design generates low to moderate pressures.
Sizes 12 ¼” – 98 ¼” wheel diameter
AMCA Class 2, 3, 4 & 5
Volume up to 445,00 CFM
Pressure up to 28" WG
Temperature Range -30° to 800°F
Arrangements 1, 3, 4, 4V, 7, 8, 9
BISW Wheel Types
Steel Wheel
For Relatively Clean Air Applications with Little or No Particulate
Tapered Shroud
Flat, Backwardly Inclined, Single Thickness Blades
Operating Temperatures up to 800 °F
