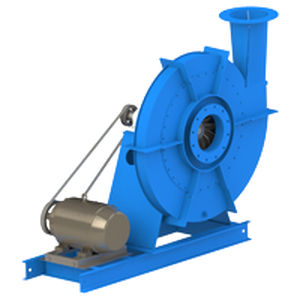

High-pressure fan TROLradialcoolingsteel
Add to favorites
Compare this product
Characteristics
- Type
- high-pressure
- Configuration
- radial
- Function
- cooling
- Material
- steel
- Applications
- industrial
- Air flow
Max.: 15,000 ft³/min
(424.753 m³/min)Min.: 0 ft³/min
(0 m³/min)
Description
Radially bladed wheel design for very stable operation at low volumes and high pressures. Suitable for high temperature and turndown applications. Extremely rugged, high pressure construction with round inlet and outlet connections, for easy standard pipe duct connections. Applications include combustion air; cooling; gas boosting; water stripping; fluid beds; glass blowing; textile fiber stripping; product drying; and pneumatic conveying.
Sizes 20” – 60” wheel diameter
Construction Class 100
Volume up to 15,000 CFM
Pressure up to 85" WG
Temperature Range -30° to 1000°F
Arrangements 1, 4, 8 & 9
TROL Wheel Types
Steel Wheel
For Relatively Clean Air Applications with Little or No Particulate
No Shroud
Radial Blades
Operating Temperatures up to 1000 °F
