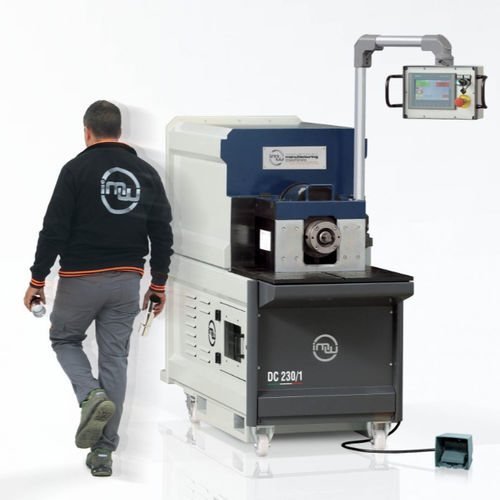

Pipe-end forming machine DC series

for stainless steelCNC

Description and Technical data • Working units with one head • Range tube from ø25 mm to ø230 mm • Stainless tube thickness 2mm • Endsizing length range from 80 mm max to 150 mm max. • Expansion range 10 mm • Reduction range 8 mm • Suitable for slots and torca notching tool • Stainless tube thickness 2mm • Length varying according to diameter Machine that allow the expanding and reducing of straight or bent tubes, utilizing rapid set-up tooling. Equipment compatible with “C” type tooling and extremely suitable to make simple notches, torca notches and reference slots.
