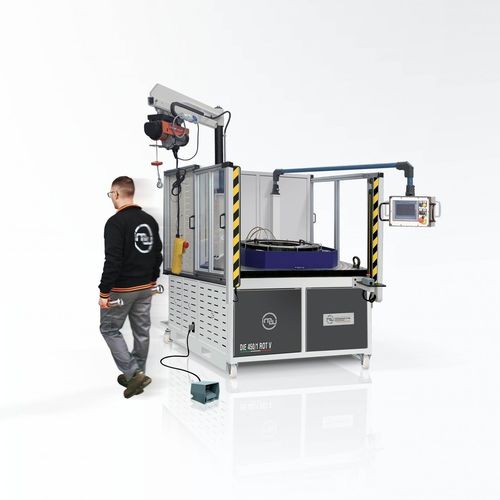

Pipe forming machine DIE seriesfor metalpipe-endtube
Add to favorites
Compare this product
Characteristics
- Product handled
- pipe-end, for pipes, for metal, sleeve, tube
- Treated material
- metal, for stainless steel, steel, copper, for aluminum, for iron
- Control
- CNC, PLC-controlled
- Operating mode
- CNC, vertical, PLC-controlled
- Other characteristics
- hydraulic, precision, for tube reducing, for tube expanding, rotating-head
Description
Vertical simultaneous expanding and reducing.
Vertical operation mode to manage bigger diameters
Expanding, Reducing, Endsizing, Bicone and Flare on tubes by means of segmented I/O fingers and rotary increasing programs.
Description and Technical data
Models: DIE 250/1 V ROT, DIE 450/1 V ROT
• Working vertical unit with one head
• Range tube from ø50 mm to ø450 mm
• Stainless tube thickness 2 mm
• Endsizing length range from 170 mm max. to 200 mm max.
• Expansion range 30 mm
• Reduction range 30 mm
