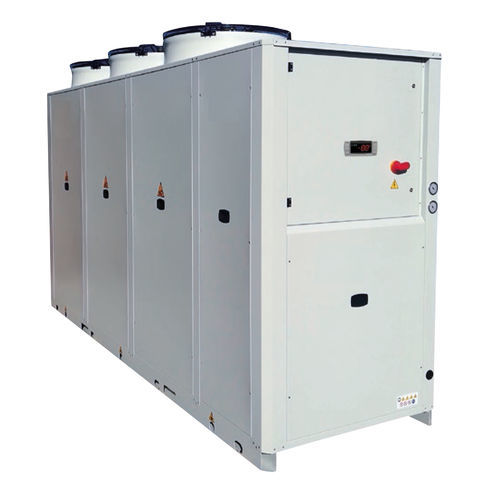

Water chiller MNFF seriesairstainless steelscroll compressor
Add to favorites
Compare this product
Characteristics
- Material
- water, air
- Other characteristics
- stainless steel, scroll compressor, pressure
- Power
Max.: 412 kW
Min.: 1.35 kW
- Maximum temperature
7 °C, 12 °C, 35 °C
(45 °F, 54 °F, 95 °F)- Flow rate
Max.: 57,000 m³/h
(2,012,936.003 ft³/h)Min.: 700 m³/h
(24,720.267 ft³/h)- Pressure
Max.: 3.38 bar
(49.023 psi)Min.: 2.5 bar
(36.259 psi)
Description
New range of MNF series air condensed chillers, three versions available.
M version (single-phase) stainless steel tank, coaxial evaporator, rotary compressor.
E version (three-phase) plastic tank, plate evaporator made of stainless steel, rotary compressor in (mod.10 ÷ 15) and scroll compressor in (mod.20 ÷ 30).
F version (three-phase) hermetic tank, plate evaporator made of stainless steel, scroll compressors.
The entire range is equipped with:
Filter in the condenser
By pass
Water filter in the process return.
Phase control.
The MNFE version is equipped with a flusostat to control the water circulation.
The MNFF version is equipped with differential pressure switch to control the water circulation and are also protected with the cataphoresis system to prevent water corrosion.
Axial fans in all range. In versions M and E water loading is manual.
Cooling capacities range from 1.35 kW to 412 kW (water 7ºC / 12ºC and ambient temperature 35ºC).
Version M is managed by an XR60CX electronic controller.
Versions E and F are managed by an IC 201 electronic controller.
