Volumetric flow regulator

for water

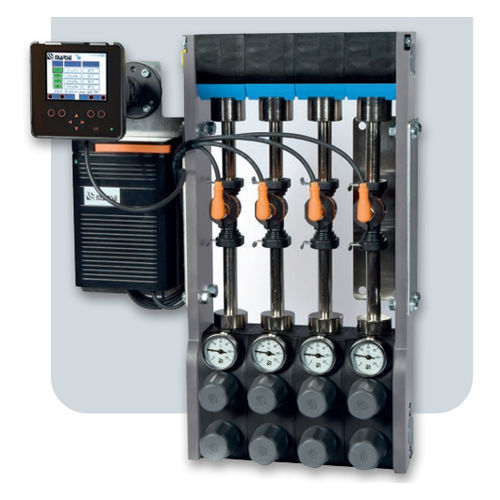

WATER FLOW REGULATOR EWFR MODEL The existing plastic tube of the flowmeter is replaced by a brass tube fitted with a flow sensor. EWFR flowmeter allows the measurement of flow and temperature, the data are displayed on the equipment screen. When the flow rate or temperature deviate from the programmed values, the alarm is activated and a red light immediately lights up on the display. TECHNICAL DATAS EWFR MODEL: Bodies made of PA 6 with 30% fiberglass Thermometer (Standard) Vitrilic rubber o’rings (hardness 70 SHA) O’rings in contact with water manufactured in EPDM Brass inlet and oulet valves are inserted in the body Maximum working temperature: 8 bar 40ºC, 7 bar 60ºC, 5 bar 80ºC, 4 bar 90ºC
