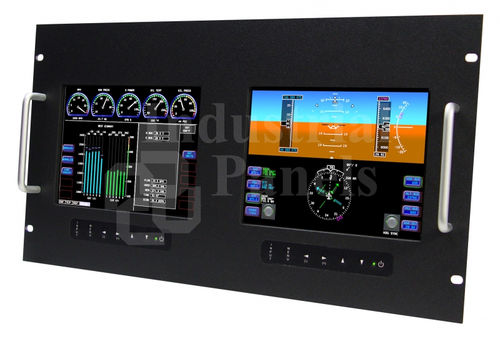

LCD monitor MRD1808 series

8.4"panel-mount

Dual High Definition 8.4” 800 x 600 Color TFT LCD Display Solid State LED Backlight High Brightness: 450 Cd/M2 Typical High Contrast: 600:1 Typical Bonded Anti-Reflective Protective Faceplate Glass for Superior Optical Performance and Better Protection on Extreme Environments Wide Viewing Angle: 80R/80L – 80U/60L RS-170 (525 Line) and RS-343 (875-Line) Interlace Formats 15.75 to 100 KHz -Specially designed for Slow Scan Signals - Legacy Timings RGB (Red-Green-Blue) Composite Video input, VGA HD-15D-Sub Standard VESA Input Picture-In-Picture (PIP) Picture-Outside-Picture (POP) Convenient Front Controls 110 / 220 VAC Input Voltage Extended Operating Temperature Rating: -30°C to +85°C EIA RS310 C – 19” Rack Mount Standard Heavy Duty Aluminum Front Panel Heavy Duty Cold Roll Steel Chassis Front Mounted Handles Internal Ruggedized Construction Options High Brightness TFT LCD Option – 1,500 Nits Wireless Remote Control Option NTSC/PAL (RCA Jack) and S-Video (5 Pin Mini Din) 3 Buffered Unity-Gain BNC Outputs (RGB) Differential Video Input for Enhanced Noise Immunity 91 Ohm Video Termination 12VDC, 24VDC or 28VDC Input Voltage Timings. Aspect Ratio: 1:1 or 4:3 (OSD Selection) Touch Screen: Resistive, Capacitive and SAW Option Front Manual Full Range Brightness and Contrast Control (Dimming) Conformal Coating of Internal Circuit Boards for Enhanced Ruggedization Strengthened Glass Protection Option
