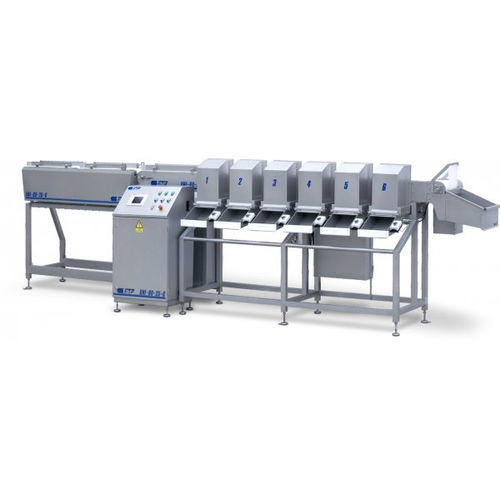

Fish grader UNI series

for poultrywith conveyor

UNIFYING WEIGHT GRADERS UNIFYING GRADERS FOR MEAT, FISH, POULTRY, ETC Our system of continuous automatic pre-packing is designed to grade and unify different types of items and products, grading items and forming batches that guarantee the highest possible precision and output, reducing excess weight margins and considerably reducing labour. The system is made up of three sections. The first is composed of a feeding conveyor belt and entry conveyor belt; these conveyor belts are equipped with demarcating devices, and ensure the product properly enters the following section. The second section is composed of a dynamic weighing unit that records the weight of the item and stores it for future operations according to a chosen programme. The third section is composed of ejectors, conveyor belt, dropping ramp and accumulating receptacles, together with lower support platforms for trays and boxes, to separate products according to their weight, in response to signals issued by the weighing unit. Items travel through all three sections on separate belts without stopping. Dynamic weighing platform. Illuminated weighing screen. Diagnostic test and auto tare. Control panel and programming touch screen. Memory for 20 sets of programmes. Memory of information about the process. Memory of weight and total number of items. Memory of weight and number of partial items by grade. Easy to change programme, no need to stop the machine. Easy to programme menu whose parameters can be modified by the operator. Information check menu in work mode. Batch formation by item number. Batch formation by weight. Configure delivery notes by batch or completed items. Configure labels by item or batch
