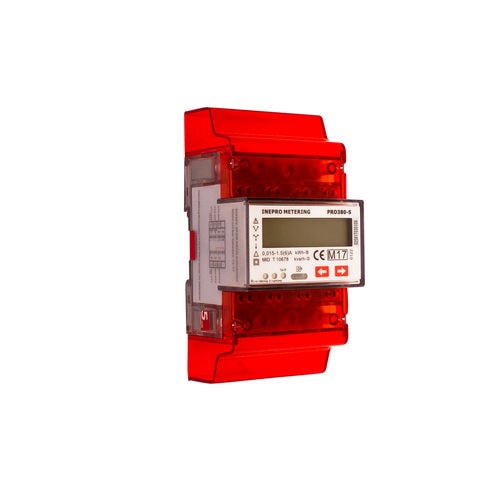

Three-phase electric energy meter PRO380 CT series

DIN railModbuspulse output

Three phase transformer connected energy meter, MID approved Features We offer an outstanding 5 year warranty on the PRO380-CT series Three phase The PRO380 CT series is a range of 4 module, three phase energy meters consisting of 3 different types, each with their specific characteristics. MID B+D The PRO380 CT energy meters comply with the Measuring Instruments Directive 2014/32/EU. The MID approval ensures the accuracy and quality of the meter and enables its use in billing purposes. Energy measurement The PRO380 CT energy meters have an exceptional combination of a high accuracy class (1/B ) for active energy measurement and a broad temperature range of -25°C to +70°C. Bi-directional The total energy usage can be calculated via 7 different calculation modes. All forward (import) and reverse (export) (re)active energy values are stored in different meter registers. Instantaneous values PRO380 CT energy meters display a number of instantaneous variables like voltage, current, active power, reactive power, apparent power, frequency and power factor on the LCD and via the different communication options. Communication The PRO380 CT energy meters are available in a standard, M-bus or Modbus version. All meter types are equipped with an infrared interface and a selectable pulse output.
