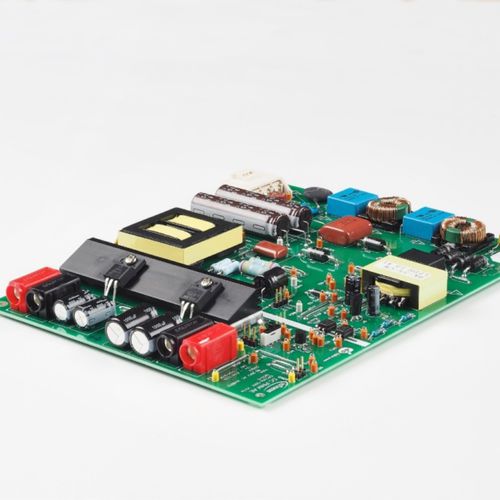

SMD DC-DC converter DEMO-IDP2308-120W

industrialconfigurableCE

The evaluation board is a digital PFC-LLC converter with output. It is controlled by Infineon’s 2nd generation XDP™ SMPS digital multi-mode PFC-LLC combo controller IDP2308. The IDP2308 is specially designed for switch mode power supplies used in TV power system and other general SMPS applications. Summary of features Multi-mode PFC configurable PFC gate driver Synchronous PFC and LLC burst mode control Configurable non-linear LLC VCO curve Configurable soft-start VAC input voltage sensing and X-cap discharge via HV pin Summary of benefits Integrated 600V startup cell Integrated floating driver based on coreless transformer technology Digital multi-mode operation for higher efficiency curve Supports low stand-by power by means of direct X-cap discharge function and advanced burst mode control Eliminates the auxiliary power supply by means of integrated startup cell and burst mode UART interface for communication and in-circuit configuration Flexible design-in by means of one time programming capability for a wide range of parameters List of components XDP™ digital multi-mode PFC and LLC combo controller (IDP2308) 600V CoolMOS™ CE power MOSFET(IPD60R400CE, IPD60R1K5CE) Target applications LCD-TV power supply General SMPS
