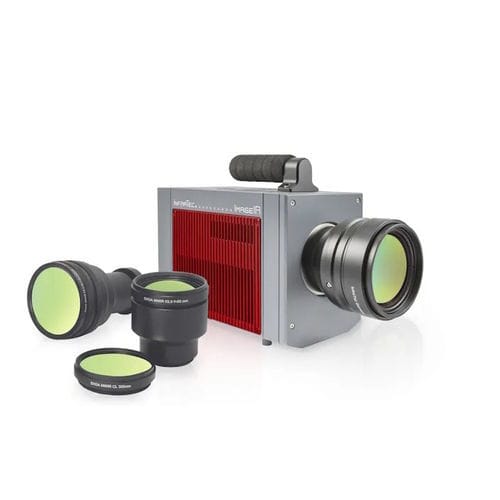

Laboratory camera ImageIR® 9500

machine visionfor the automotive industrydigital

The ImageIR® 9500 is suitable for highly demanding applications in science and industry, object monitoring and microthermographic analysis of extremely small structures. • Cooled FPA photon detector with (1,280 × 720) IR pixels • Opto-mechanical MicroScan with (2,560 × 1,440) IR pixels • Full-frame rate up to 120 Hz • GigE Vision compatible • Up to 1.5 kHz with (320 × 180) IR pixels Detector Format Efficiently measuring the smallest structures on large-scale objects Icon 3.7 megapixel MicroScan (2,560 × 1,440) IR pixels by genuine camera hardware IR full frame rate 120 Hz IR-Frame Rate Analysis of extreme temperature changes and gradients in full frame measurement accurancy 1% Measurement Accuracy Highly accurate and repeatable measurements thermal resolution better than 25 mK Thermal Resolution Precise detection of smallest temperature differences InfraTec Icon 10 GigE 10 GigE Interface High-speed, long-distance interference proof data transmission InfraTec-icon-motorfocus Motor Focus Precise, fast and remotely controllable; including multiple autofocus functions
