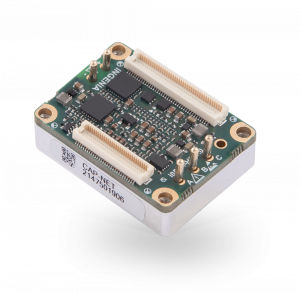

CANopen servo drive CAPITAN NET-C

DCPWMsingle-axis

CAPITAN NET-C: PCB MOUNT, ULTRA-LOW PROFILE CANOPEN SERVO DRIVE CAPITAN NET CANOPEN SERVO DRIVE HIGHLIGHTS • Compact and super-flat design (10.3 mm) • Dual loop support for unparalleled precision • Ultra-fast servo loops for smooth operation • PWM frequency up to 200 kHz for low inductance motors • Plug-in design for direct integration in carrier PCB, single or multi-axis applications DISCOVER THE CAPITAN NET CANOPEN SERVO DRIVE Capitan NET is an ultra-compact, high power density CANopen servo drive. The pluggable design is optimal for a carrier board, with single or multi-axis, integration. The Capitan NET drive is lightweight and has an extremely low profile, enabling ease of integration for multiple applications, such as: • End-effector actuators • Surgical robot joints • Exoskeletons • Gimbals • Haptic applications The Capitan NET servo drive features the most advanced transistor technology in the world, offering the highest power density and efficiency. Operating with PWM frequencies up to 200 kHz, while sustaining negligible EMI, delivers extremely high performance. Relevant design information and circuitry, necessary for integration in a carrier PCB, is provided in the product manual.
