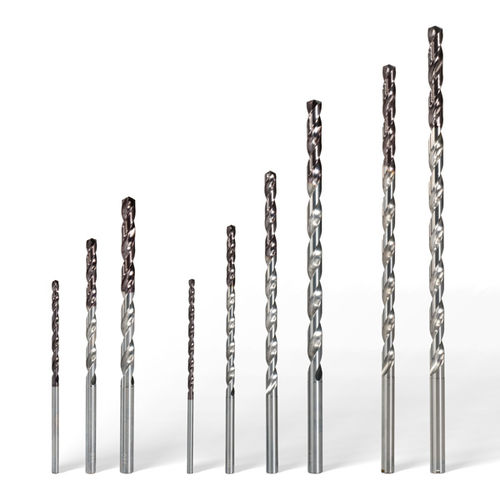

Solid drill bit Drill-In DRXL series

multi-purposecarbidehigh-performance

Ingersoll introduces additions to the Drill•InXL lines, for deep hole drilling up to 20xD. This drill series has optimized geometries for smooth chip evacuation with low cutting forces. A pecking cycle is not required – these drills help produce high productivity machining. These drills provide the customer with reliable machining and excellent cost savings and are designed to work with M.Q.L Systems. • Unique geometry with high performance. • Strong cutting edges resist chipping and breakage. • A wide flute design and lapping on the flute for smooth chip evacuation. • Ultra fine substrate with TiAlN coating for a high level of wear-resistance and toughness. • Increased body rigidity and high quality of holes with low cutting force. Applications: • Automotive Parts • Mold & Die Parts • Machine Tool Parts Features and Benefits Advanced M.Q.L. delivery system for extra-long solid carbide drills Decreased friction resulting in increased tool life with M.Q.L. Strong cutting edges of drill resist chipping and breakage resulting in increased productivity Wide flute design and lapping on the flute for smooth chip evacuation Ultra-fine substrate with TiAlN coating for a high level of wear-resistance and toughness Complete range of 10XD, 15XD, and 20XD drills that are also available with M.Q.L. design
