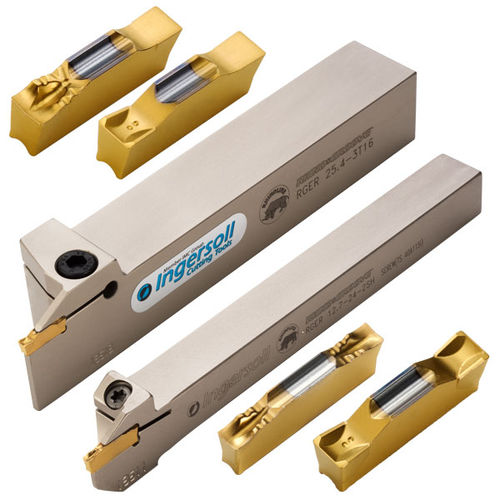

External parting and grooving tool RhinoGroove™ RGER/L series

insert

RhinoGroove is an economical product series consisting of external holders and inserts that feature a shorter overall length. These inserts were specifically developed for strength, efficiency, economy and long tool life in shallow depth-of-cut parting and grooving. When compared to the competition, and to Ingersoll’s existing T-Clamp Ultra+ inserts, the RhinoGroove inserts’ center of gravity promotes better stability in the pocket. This enables powerful clamping of the insert, which reduces vibration and keeps the insert straight while engaged in the work piece. Since vibration has the single greatest influence on tool life in parting and grooving, this design ensures that RhinoGroove will extend tool life. In addition to exceptional performance in shorter groove applications, all RhinoGroove inserts are priced 30% lower than comparable longer inserts. Features • Single and double-ended inserts, now available with 6° and 15° lead angles to reduce burrs • Ideal for small component and shallow depth of cut parting & grooving • Vibration minimized due to the insert’s shorter length and improved center of gravity • 30% lower price compared to longer parting & grooving inserts! • Two chip breakers for optimal chip formation in multiple materials & conditions Features and Benefits Ideal for small component and shallow-to-medium depth of cut parting & grooving. Vibration minimized due to the insert’s shorter length and improved center of gravity. 25-30% lower price compared to longer parting & grooving inserts! New single-end inserts allows 20% deeper groove capability. New Swiss holder sizes provide excellent performance at a very attractive price.
