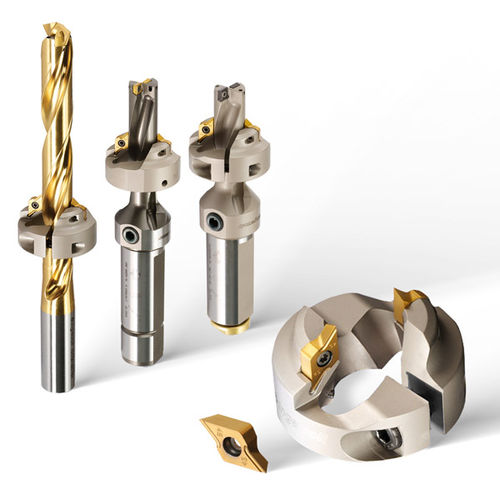

Machine tool chamfering ring CB series

Ingersoll is introducing the first Multi-Tool, 45 degree Chamfer Ring that offers a new twist to drilling and chamfering in one operation, reducing set-up and cycle time, improving productivity, and reducing inventory of special combination tools . The new Chamfer Ring fits three of our most popular drill bodies: the Gold•Twist Drill, the Quad•Twist Drill, and the Quad•Drill+. It fits bodies ranging from 14.0mm (.551”) – 20.6mm (.811”) for 3, 5, 8 & 12XD Gold•Twist Drills and 3, 4, & 5XD Quad•Twist & Quad•Drill+ drills. The new Chamfer Ring insert, CRNG 0802-45CD, in grade IN2505 is two effective. No more need to slow the feed rate down. It offers a maximum .118" x 45 degree chamfer size and a multi-layered PVD coating that works well in a wide range of materials. Both the Chamfer Ring and Inserts are available now. Features and Benefits Multi-Purpose Chamfer Ring that Combines Drilling & Chamfering into One Operation Reduces Set-up Time, Cycle Time, and Inventory of Special Combination Tools Fits Three of Our Most Popular Drills: Gold Twist, 3, 5, 8 & 12XD, L:D, and Quad Twist & Quad Drill+, 3, 4, & 5XD, L:D New Chamfer Insert: CRNG 0802-45CD in Grade IN2505 Two Effective Inserts So There Is No Need to Reduce Feed Rates Improved Maximum Chamfer Size, 3mm (.118") X 45 Degree Product Ranges & Details Ring Diameters 1.34", 1.50", 1.65" and 1.85" Fits Body Diameters 10.0mm(.3937") - 25.4mm(1.000") L:D Ratios Gold-Twist: 3xD, 5xD, 8xD & 12xD Quad-Twist/Drill: 3xD, 4xD & 5xD Maximum Chamfer DOC .118" x 45º
