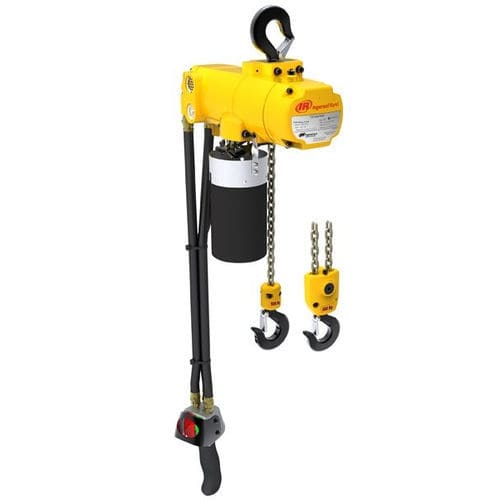

Electric chain hoist CLK Seriestrolleycompactspring
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Other characteristics
- compact, lightweight, spring, trolley
- Number of strands
- 6
- Capacity
125 kg, 250 kg, 500 kg
(275.6 lb, 551.2 lb, 1,102.3 lb)- Lifting speed
4.6 mm/min, 9.8 mm/min, 13.1 mm/min
(0 in/s, 0.01 in/s)- Lowering speed
6.7 mm/min, 11.3 mm/min, 13.7 mm/min
(0 in/s, 0.01 in/s)- Weight
15.4 kg, 17.2 kg
(33.95 lb, 37.92 lb)
Description
Designed for production applications and loads up to 1100 lbs, the CLK-Series is the latest addition to Ingersoll Rand's line of air chain hoists. Exceptional durability with an ASME HST-5 rating of A5 (FEM/ISO mechanism classification of 1Am/M4) the CLK Series hoist are duty-rated to operate 800 full-load hours between overhauls. Learn how to choose the appropriate CLK Hoist.
• Meets Specifications
• Rugged, lightweight and compact design
• Disc brake is non-asbestos and spring engaged with air release
• Quiet operation <75 dBA sound levels
• Upper and lower limit stops prevent dangerous over-travel of the hook
• Full flow pendent for maximum control and enhanced load positioning
• 100% duty cycle multi-vane (6) air motor
• Hook or trolley mounted versions available
• Steel snap hooks with safety latches
• Standard lift is 10 feet; additional lifts are available
• Standard pendent length is 6 feet or 4 feet less than lift
