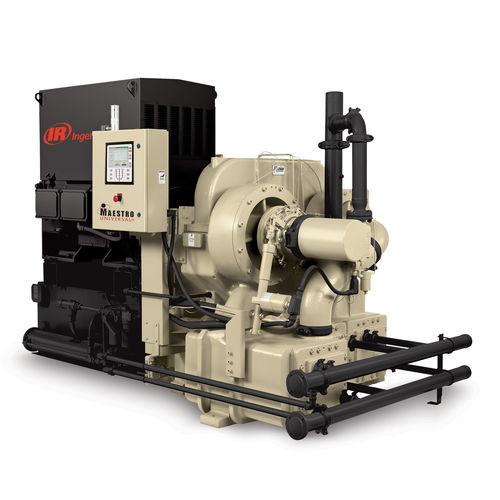

Centrifugal compressor MSG® TURBO-AIR® 3000

airelectrically-poweredstationary

The MSG TURBO-AIR 3000 was built on a standard frame, featuring highly-engineered air flow component. It is designed for easy, low-cost installation and operation. The MSG TURBO-AIR 3000 was designed with a built-in aftercooler that eliminates the need for a separate pipeline type cooler, and a packaged check valve for faster installation and easier maintenance. COMPONENTS Impellers: Five-axis-milled impellers designed an manufactured with advanced techniques and methods Vaned Diffusers: Optimized vane design and placement for increased efficiency Lubrication System: Self-contained, low-pressure lubrication system Intercoolers/Aftercooler: Water-in-tube intercooler and aftercooler bundles slide out for easy inspection and cleaning Advanced Pinion Bearing Design: Designed for extended life and operation at any operational load. Seals: Designed with non-contacting and non-wearing labyrinth air and oil seals. No buffer air required for oil-free air. Do not require periodic replacement like carbon ring seals. Horizontally Spilt Gearbox: Allows for easy access when the jobsite maintenance policy requires periodic inspection. Variable Inlet Guide Vanes: Variable inlet guide vanes can offer power savings of up to 9% when operating in turndown. Inlet guide vanes impart a whirling motion to the inlet air flow in the same direction as the impeller operation, reducing the work input. Net power savings can be realized at reduced flow or on days colder than the design temperature. Inlet guide vanes are positioned close to the inducer of the impeller to maximize performance.
